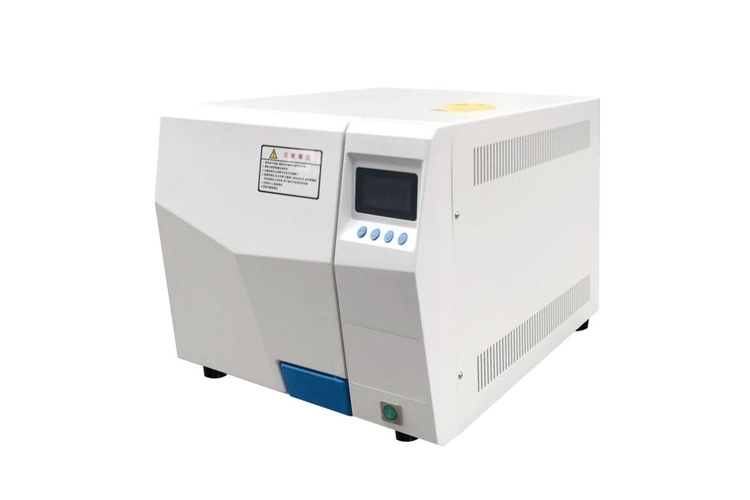

TM-XD24D Table Top Steam Sterilzer

Name: TM-XD24D Table Top Steam Sterilzer
Brand: Beijing Lanetech Square Co., Ltd.

The TM-XD24D Table Top Steam Sterilizer is a highly efficient device designed to sterilize various items using steam under pressure. Primarily utilized in medical and research settings, including hospitals, public health centers, health stations, and clinics within factories and mines, as well as scientific research institutes, it ensures the safe and rapid sterilization of instruments and materials. Its automatic operation adds convenience and reliability, making it an essential tool for ensuring the sterility of medical instruments and laboratory equipment, thereby preventing the spread of infections and ensuring patient and staff safety.

Send Mail

Specification of TM-XD24D Table Top Steam Sterilzer

The product utilizes saturated steam to rapidly and efficiently sterilize articles.
It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc,.
To sterilize medical equipment, surgical dressings, glass utensils, solutions, substrata.
It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.

Parameter of TM-XD24D Table Top Steam Sterilzer

For 4~6 minutes rapidly sterilizin.
Digital display of working status, touch type key.
Witprotection of water lacking.
Exhaust the h 3 fixed .cycles of sterilizing program and adjustable for user.
The whole process of water adding, temperaturerising, sterilizing, drying steam discharging controlled automatically.
Steamwater inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
Safe cool air automatically.
Door safety lock system.

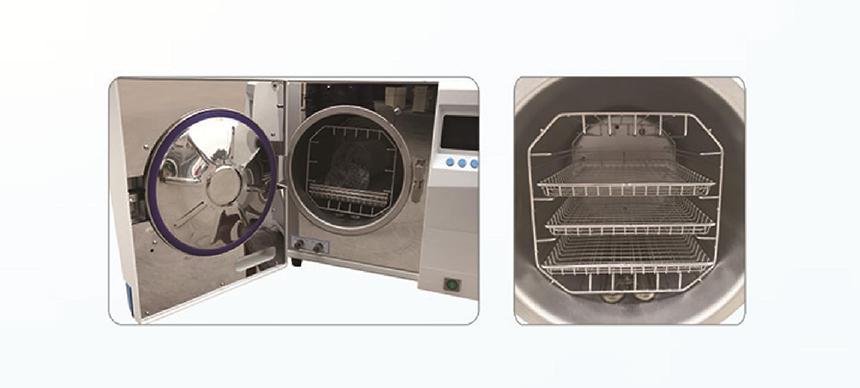

With four stainless steel sterilizing plates.
The chamber of the sterilizer is made of stainless steel.
Automatically shut off with beep reminding after sterilization.
With drying function.

Technical Data of TM-XD24D Table Top Steam Sterilzer

MODEL	TM-XD20D	TM-XD24D
Technical Data	TM-XD20D	TM-XD24D
Stenilizing chamber volume	20L φ250×420mm	24L φ250×520mm
Working pressure	0.22Mpa
Working temperature	134℃
Temperature adjust range	105-134℃
Timer range	0-99min
Heat average	≤±1℃
Power	1.5KW/AC220V.50Hz
Sterilizing plate	340×200×30(3piece)	400×200×30(3piece）
Dimension	480×480×380	580×480×384
Exerior package dimension	700×580×500	800×580×500
G.W/N.W	43/40Kg	50/45Kg
