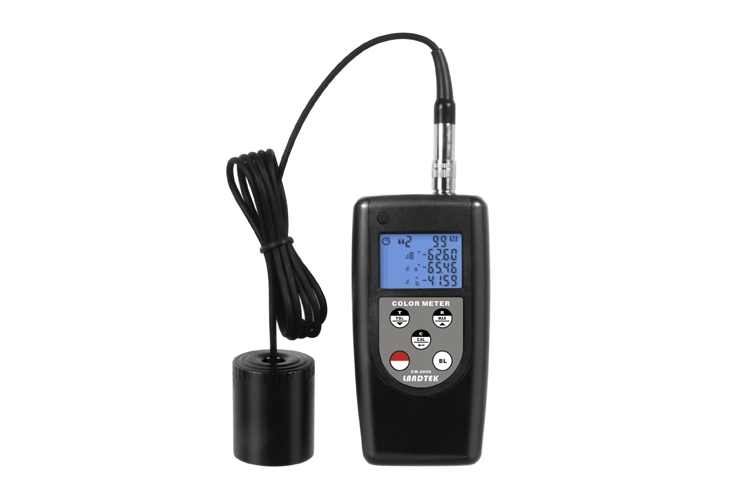

CM-200S Color Meter

The meter stands out as an exceptionally compact and user-friendly tristimulus colormeter, meticulously crafted for the specific purpose of gauging the color difference between two distinct colors. This innovative device is particularly tailored for accurately measuring the color characteristics of various objects, ensuring precise color differentiation and analysis. Its design focuses on simplicity and efficiency, making it an indispensable tool for professionals in industries where color precision is paramount.

  • color meter
  • color meter
Send Mail

Applications of CM-200S Color Meter

The tester is compacted and easy to use. It fits for measuring the color difference between two colors.

The tester is designed for measuring the color of no lighting and non-fluorescent one, such as textile, paper, leathers, painting materials, etc.

It is the useful tool for the quality control and different industries.


Features of CM-200S Color Meter

Color difference displayed ∆/L*, a*, b*/, ∆/E*ab, C*ab, H*ab/, ∆/Y, x, y/, ∆/X, Y, Z/, ∆/Rs, Gs, Bs/ or ∆/WI, YI, Tw/
Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
Statistical function (Max., Min., Average and Standard Deviation)
Color difference set: PASS / WARN / FAIL.
Store difference target colors: 9 color
User calibration function: higher accuracy.
Auto memory (99 sets) & Read function.
Digital backlight display: Yes.
Auto power off while low battery: Yes.
Applies USB data output.


Specifications of CM-200S Color Meter

DisplayTriple 4 digit LCD
Auto power offApprox. 3 mins
Data memory capacity99 set /Direct reading from LCD display/
Low battery indication√
Illuminating/Viewing45°/0°
geometryIllumination at 45°, measurement at 0°
Measuring areaColor difference: ∆/L*,a*,b*/, ∆/E*ab, C*ab, H*ab/, /Y,x,y/, ∆/X, Y, Z/, ∆/Rs, Gs, Bs/ or ∆/WI, YI, Tw/
Color space: /L*, a*, b*/, /L*, C*ab, hab/, /Y, x, y/, /X, Y, Z/, /Rs, Gs, Bs/ or /WI, YI, Tw/
Targeted color memory9 channels; set by measurement or keypad
Measuring rangeL*: 5 to 100
Measurement conditionsObserve: CIE 2° Standard Observer
Illuminant deviceWhite LED lamp
RepeatabilityStandard deviation within ∆E*ab 0.5
(Average of measurements of standard white plate)
Minimum intervalApprox. 2 sec
between measurements
Operating temperature & humidity: 0~40°C/32~104°F/, < 85%RH.
Storage temperature & humidity: -10~40°C/14~104°F/, < 70%RH.
Power source4x1.5 AAA (UM-4) Battery
Dimensions140x73x35mm (5.5x2.9x1.4inches)
WeightApprox. 220g with battery
Standard accessoriesMain Unit
Measuring head
White calibration card
Carrying Case
Operation Manual
Optional accessoriesUSB Data Cable with Software
