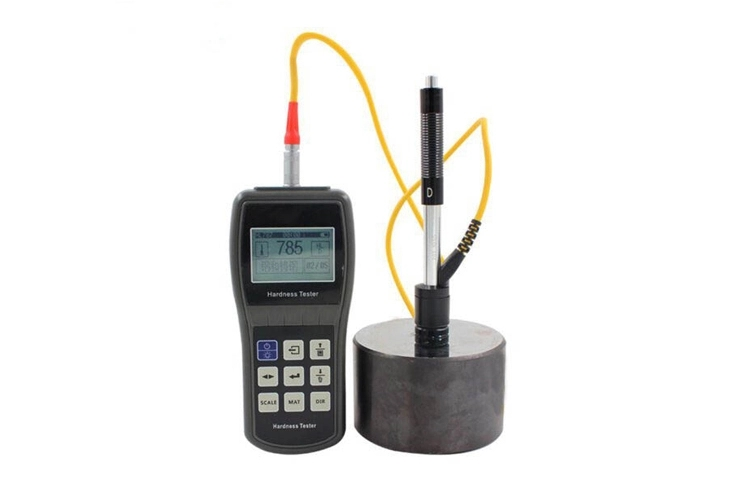

TH210 Portable Lee Hardness Tester

Name: TH210 Portable Lee Hardness Tester
Brand: Beijing Lanetech Square Co., Ltd.

TH210 Portable Leeb Hardness tester is a model which is used in testing spot mostly. Because it is very commonly used in workshop, it is very popular. It is with 6 hardness scales, each scale can be calibrated independently. It is compatible with multiple 7 impact devices.

Send Mail

Features of TH210 Portable Lee Hardness Tester

Scales: based on Leeb (HL), could converted to Vickers (HV), Brinell (HB), Rockwell HRC, HRB, Shore HS and tensile strength (MPa).
6 above hardness scales, each one can be calibrated separately.
Automatic identification for different impact device .
Compatible with multiple impact devices, 7 different Impact devices are optional.
128×64 dot Matrix LCD Display screen with backlights& contrasting adjustable.
To transfer the testing data easily by the special PC software.
Preset measuring times (1-32) and calculate the average values automatically.
Preset Low and high limits.
Automatic power off while low battery.

Specifications of TH210 Portable Lee Hardness Tester

Measuring Range		170-960HLD
Minimum. Reading		1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1Mpa
Hardness Scales		HL, HRC, HRB, HV, HB, HS
Accuracy		±6HLD（when HLD=760+/-30）
Display. Reading		Leeb, conversion hardness, material, impact direction, test times, average value, time
Hardness Direction		360° /down, inclined down, level, inclined up and up/
Memory		100 groups of testing results
Applicable Workpiece	Min. Weight	5 kgs
		2 kgs /on solid support/
		0.1 kg /coupled on plate/
	Min. Thickness	5mm
	Min. Radius of curved surface	30mm
	Max. roughness (Ra)	1.6μm
Power Supply		3×1.5V AAA batteries
Weight		220g /Main Unit + Impact Device Type D/
Dimensions		6.1×3.1×1.4

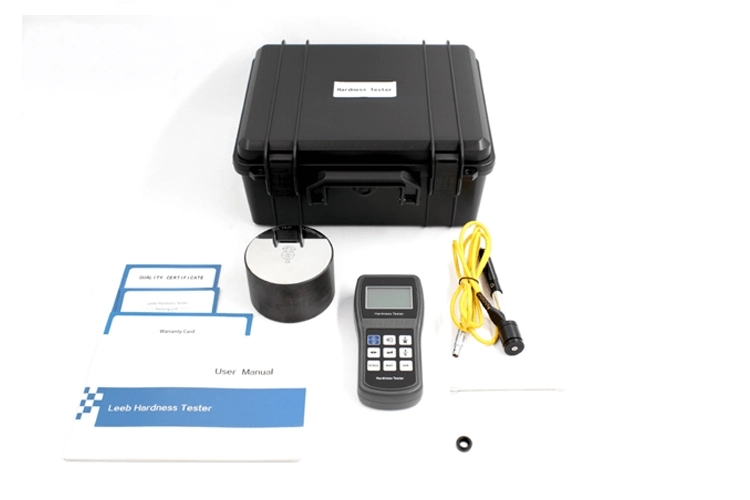

Standard Delivery of TH210 Portable Lee Hardness Tester

Main Unit	1 pc
Impact Device D	1 pc
Cleaning Brush	1 pc
Small Support Ring	1 pc
Battery 1.5V AAA	3 pcs
Hardness Test Block	1 pc
User Manual	1 pc
