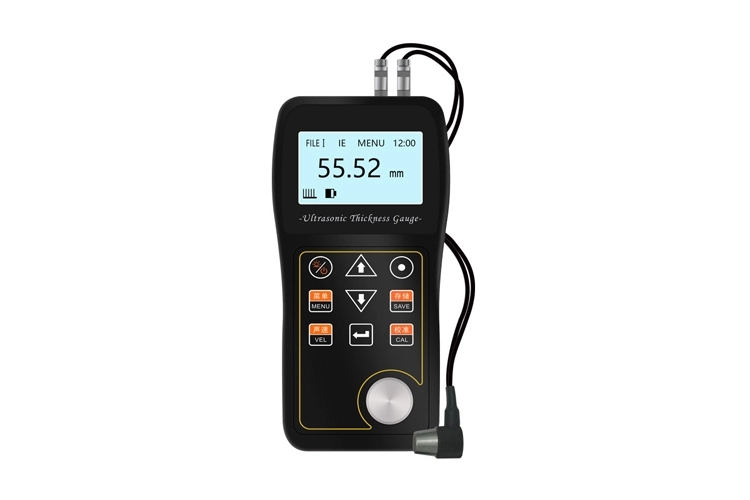

UT200 Ultrasonic Thickness Gauge

Name: UT200 Ultrasonic Thickness Gauge
Brand: Beijing Lanetech Square Co., Ltd.

This thickness gauge utilizes both the Interface Echo and Bottom Echo Difference (IE) and the Pulse Echo (PE) ultrasonic thickness measurement principles, enabling it to accurately measure the thickness of a product beneath its coating. Additionally, it features a testing function designed to assess the authenticity and purity of precious metals, making it an essential tool for verifying gold bars, silver bars, gold coins, silver coins, and other precious metal items.

The instrument is adept at precisely measuring a wide range of plates and machined parts, finding extensive application across various industries including petroleum, chemical, metallurgy, shipbuilding, aviation, and aerospace. Its dual measurement principles and purity testing capability make it a versatile and invaluable asset for professionals in these fields.

Send Mail

Feature of UT200 Ultrasonic Thickness Gauge

The 3 measurement modes, PE, IE and TEST, are adopted to measure the thickness through the coating more accurately.
High-precision timing chip and v-path calibration model are adopted to match wide measurement range and high accuracy.
The testing values can be completely stored, including thickness value, sound velocity and time.
The displaying resolution is 0.01mm/ 0.1mm.
The LCD lightness is adjustable. And it has LED backlight display, it can meet in various light environments.
It is equipped with upper computer software to facilitate reading of various data.

Parameter of UT200 Ultrasonic Thickness Gauge

Working principle	Ultrasonic	Be able to pass thr -ough the coatings	IE mode can pass through 500μm coating
Measurement mode	PE/IE/Test	Measurement range	0.6~500mm
Precision	H<10mm ±0.05mm H≥10mm ±(0.05mm+H/100)mm	Probe size	Equipped with diameter 10MM as standard
Resolution	0.01mm/0.1mm(optional)	Display screen size	2.0'' FSTN,128*64 dot matrix, LED backlight
Measurable materials	Steel, iron, glass, plastic, aluminum, etc	Sound velocity range	1000~9999m/s
Storage capacity	500 sets of data	Units of measurement	Metric / imperial
Language supported	Chinese/English	Working temperature	0~50℃
Environment humidity	Relative humidity less than 90%	Power supply	2*1.5V AA battery
Product size	1507133mm	Product weight	160g

Probe Selection of UT200 Ultrasonic Thickness Gauge

Model	Feture	Frequency(MHZ)	Diameter of contact area (mm)	Measuring range (steel) (mm)	Allowable contact temperature (℃)
5M standard probe	Universal	5	10	1.0~300.0	-10~60
2M coarse crystal probe	Special-purpose	2	12	2.0~500.0
7M Micro diameter probe		7.5	6	0.85~50.0
H2M high temperature probe		3	12	4.0~80.0	-10~350
