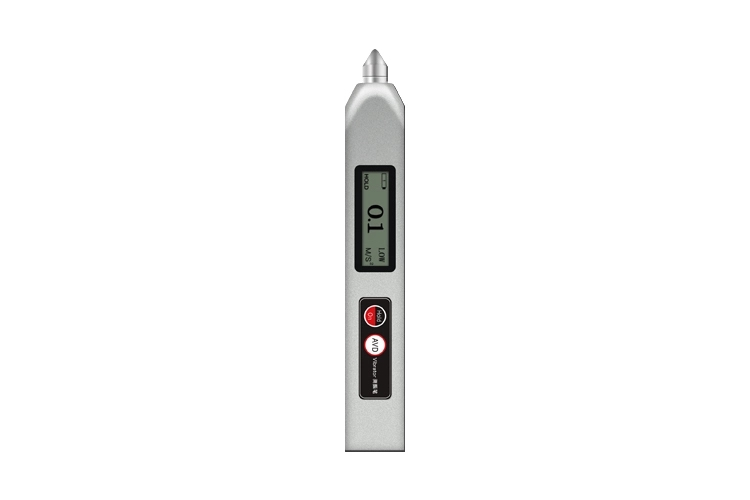

VM100 Pen Type Vibration Tester

Name: VM100 Pen Type Vibration Tester
Brand: Beijing Lanetech Square Co., Ltd.

VM100 is a portable pen-type vibration tester that integrates high-frequency acceleration and low-frequency acceleration, velocity, displacement. It is small size and test accurately. It can test motors, fans, pumps, compressors, and machine tools.

Send Mail

Features of VM100 Pen Type Vibration Tester

Dot matrix liquid crystal display screen, with AVD display function and high frequency acceleration display feature. It can carry out simple fault diagnosis.
Small size, solid shell, excellent electromagnetic anti-interference capacity.
Powered by two LR44 batteries, very low power consumption.
Two keys to complete all operations, easy operate and understanding.

Application of VM100 Pen Type Vibration Tester

The high-precision pen-type vibration tester is a portable gauge that integrates the measuring items for high-frequency acceleration and low-frequency ,velocity, displacement. It is with simple operation, multi-powerful functions, and anti -dropping and anti-shocking. This product is suitable to preventive measurement and monitoring of industrial working vibration machinery such as motors, fans, machine tools, pumps, compressors, etc. Its characteristics are very practical on site.

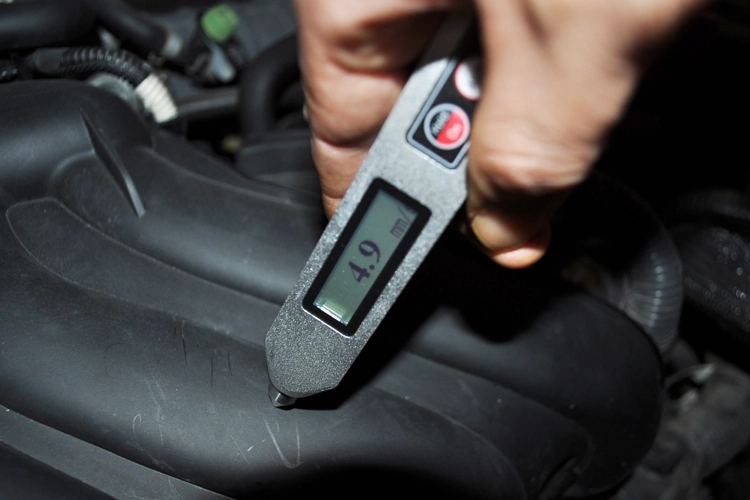

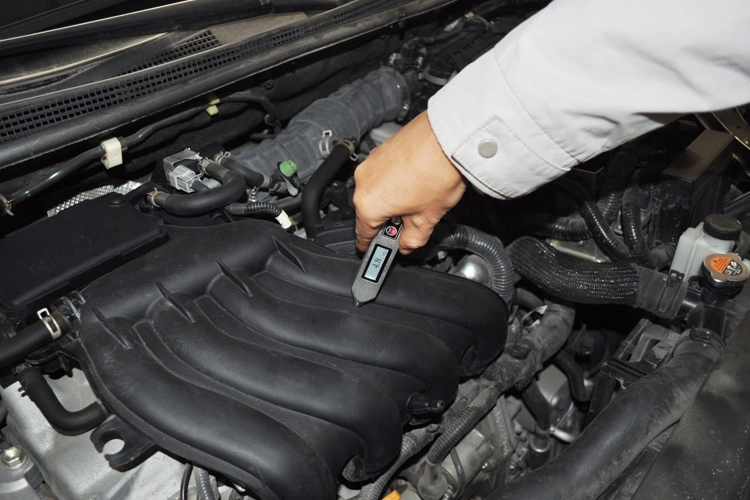

The vibration measurement value is directly displaying on the backlight LCD screen. During measuring, the vibration tester should be kept at vertically and contact to the surface of the measured object closely. The tester applying a pressure about 5-20N on can be measured more accurately.

Product Technical Parameters of VM100 Pen Type Vibration Tester

Measurement parameters	acceleration, velocity, displacement, (High frequency acceleration, low frequency)
Measurement deviation	Accuracy: +5% + 2 digits (% reading + digits), Calibration period is 1 year;
Display	LCD display
Battery	2Pcs LR44
Continuous working time	Continuous working for about 4 hours, intermittent using about 300 times
Testing range	Acceleration:0. 1m/s2-290.0m/s2/peak value/ Velocity: 0. 1mm/s 290.0mm/s/valid value/ Displacement: 0.001mm-2.900 mm /peak-peak value/
Frequency range	Acceleration: 10Hz ~ 1kHz(LO); 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz
Working environment	Temperature 0°C ~ 40°C; Relative humidity<85%

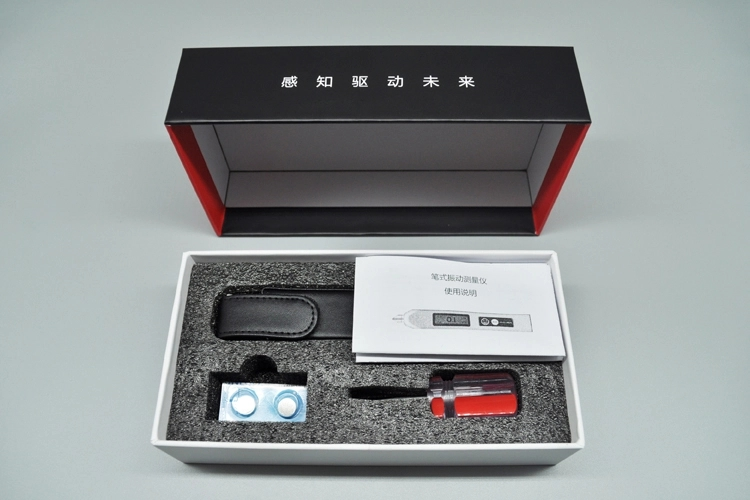

Standard Delivery of VM100 Pen Type Vibration Tester

Main Unit	1 Pcs
Battery	2 Pcs
Screwdriver	1 Pcs
Main unit casing	1 Pcs
Packing box	1 Pcs
Operation Manual	1 Pcs
Certificate	1 Pcs
Warranty card	1 Pcs
