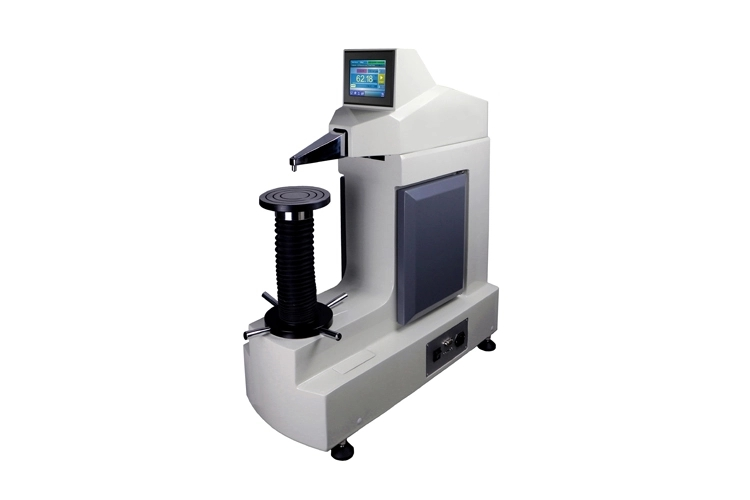

KHT800-M Automatic Rockwell Hardness Tester

Features of KHT800-M Automatic Rockwell Hardness Tester

• The testing force is applied via a closed-loop controlling unit with a load cell, a DC motor and an electronic measurement and control unit instead of traditional dead weights. The result is highly accurate values at all test loads up to 0.5%.

• Simple plug - and - play technology allow for more quick and easy installation than the traditional weights type machine.

• Manual handle wheel is for pre-load.

• Applying automatic main-load and testing cycle.

• Extended dolphin nose allows vertical testing height up to 300mm and throat depth up to 220mm.

• Integrated casting body with wider basement leads to a permanent stability.

• Communication with RS232 and USB port to PC.

• rockwell hardness method


Functions of KHT800-M Automatic Rockwell Hardness Tester

• Remain Regular Rockwell hardness tester for metal and plastic material.

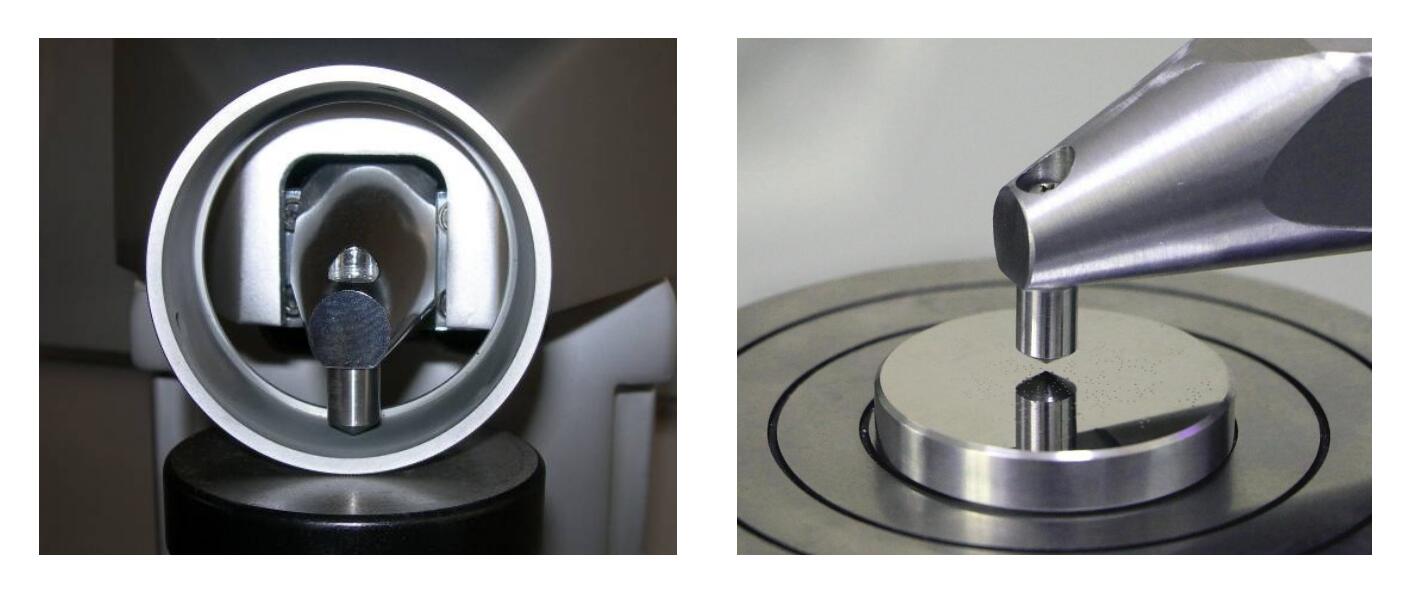

• Horizontal protrudent Indenter Design, suitable for internal and external testing too.

• Testing on Surfaces difficult to reach out. Testing internal surface of rings and tubes too.

• Provide with many features such as high measuring precision, wide measuring range up to 15 Rockwell scales.

• The Rockwell hardness tester is suitable for measuring carbon steel, alloy steel, cast iron, non -ferrous metal, etc.

• Automatic testing cycle: Lifting parts, pre-loading, loading, dwell, unloading, testing will be finished, showing value automatically.

• Measuring results digitally is displaying and can be printed, or transmitted to external computer automatically by USB.

• Test HR value can be converted to the value of HB, HV, HK and σb value.

• The tester meets all the Standard such as ISO 6508-2, ASTM E18.

Parameters of KHT800-M Automatic Rockwell Hardness Tester

Standard configuration of KHT800-M Automatic Rockwell Hardness Tester
