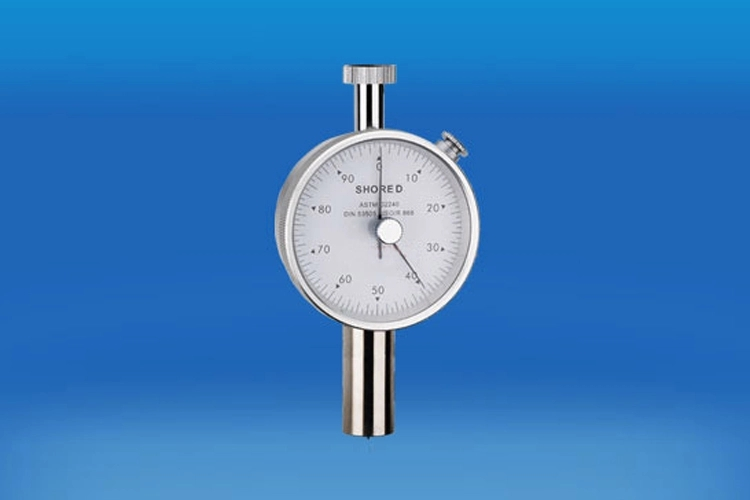

SD100 Analog Shore D Hardness Tester

The Shore D hardness tester is a specialized instrument designed to accurately measure the hardness of various hard materials. This includes hard rubber, hard colophony, grass, plastic, print boards, fibre, and similar substances. Its application is widespread, encompassing laboratories, research institutes, universities, and workshops among other settings. This tool is essential for quality control, research, and development purposes, providing precise measurements that are crucial for material analysis and product testing. It plays a key role in ensuring the materials meet the required standards for hardness in various industrial and academic applications.


  • shore d durometer hardness tester
  • shore d durometer hardness tester

Specification of SD100 Analog Shore D Hardness Tester

  • SHORE D hardness tester measure hard rubber, hard colophony, grass, printing board, fibric, plastic, etc,.

  • It meets DIN 53505, ASTM D2240, ISO/R868, JIS R7215.

  • Executive standard  - GB/T531-99, GB2411-80, HG/T2489-93, JJG304-2003.




Parameter of SD100 Analog Shore D Hardness Tester

High resolution
With facility, easy to operate
Use by handy or by test stand(HLX-D)
Double Needle
Test range0-100 HD
Available test range10-90 HD
Dimension115*60*25(mm)
Stroke2.5 mm
Tip dimensionSR0.1mm
Net weight0.5Kgs
