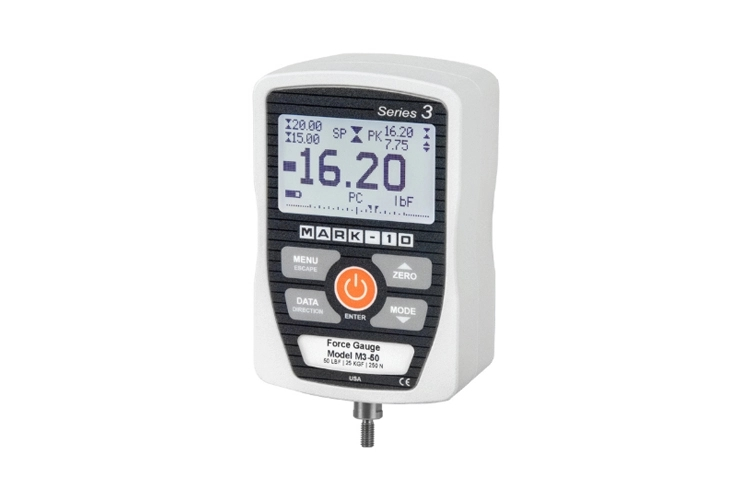

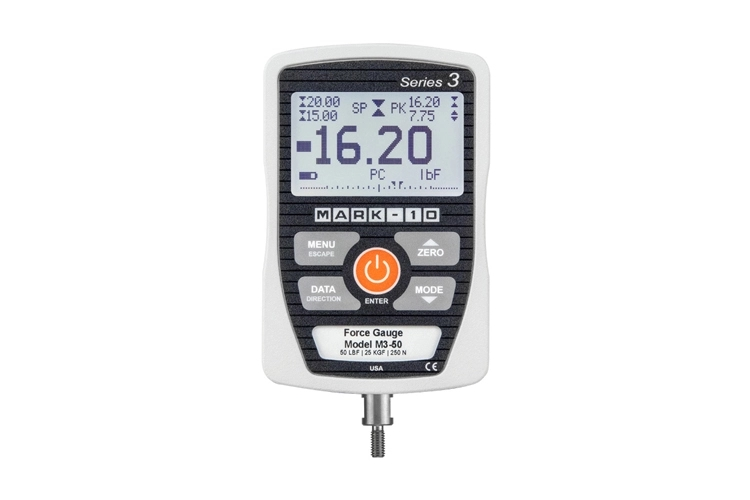

Series 3 Basic Digital Force Gauges

The Series 3 digital force gauges offer a sampling rate of 2,000 Hz, ensuring precise measurements across various testing conditions. These gauges are equipped with a backlit graphic LCD that shows information in large, easy-to-read characters, and feature a user-friendly menu for easy access to the device’s extensive functionalities and adjustable settings. For data collection, a USB output is available, and set point indicators facilitate pass-fail assessments.

Designed with an overload protection feature that safeguards the device up to 200% of its capacity, the gauges also display an analog load bar on the screen for a visual depiction of the force being applied. The ergonomic and reversible aluminum housing of the gauges allows for versatile use, either handheld or mounted on a test stand for more complex testing scenarios. Series 3 gauges are fully compatible with Mark-10 test stands, grips, and software, offering a comprehensive testing solution.

Included with the gauges is the MESUR® Lite data acquisition software, which simplifies the process of collecting continuous or single-point data. The software’s functionality includes a one-click export to Excel, enhancing the ease of data analysis and manipulation.

Fetures of Series 3 Basic Digital Force Gauges

High-speed 2,000 Hz sampling rate

USB data output of continuous or individual data points

Ultra-compact size

Large backlit graphic display

Programmable set points with pass/fail indicators

Live load bar graph with set point markers

Peak readings and set points always displayed

3 selectable units of measurement

Configurable audio alarms and key tones

Specification of Series 3 Basic Digital Force Gauges

Accuracy:

±0.3% of full scale

Sampling rate:

2,000 Hz

Power:

AC or rechargeable battery. Multi-step low battery indicator is

displayed, gauge shuts off automatically when power is too low.

Battery life:

Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use

Measurement units:

lbF, gF, kgF, N (depending on model)

USB outputs:

Configurable up to 115,200 baud.

Safe overload:

200% of full scale (display shows “OVER” at 110% and above)

Weight:

M3-012 - M3-100: 0.7 lb [0.3 kg]
M3-200 - M3-500: 0.9 lb [0.4 kg]

Shipping weight:

M3-012 - M3-100: 3 lb [1.4 kg]
M3-200 - M3-500: 3.2 lb [1.5 kg]

Environmental requirements:

40 – 100°F, max. 96% humidity, non-condensing

Warranty:

1 years (see individual statement for further details)

Country of origin:

USA

Models:

Model

Description

M3-012

Force gauge, 0.12 lbF / 50 gF / 0.5 N

M3-025

Force gauge, 0.25 lbF / 100 gF / 1 N

M3-05

Force gauge, 0.5 lbF / 250 gF / 2.5 N

M3-2

Force gauge, 2 lbF / 1 kgF / 10 N

M3-5

Force gauge, 5 lbF / 2.5 kgF / 25 N

M3-10

Force gauge, 10 lbF / 5 kgF / 50 N

M3-20

Force gauge, 20 lbF / 10 kgF / 100 N

M3-50

Force gauge, 50 lbF / 25 kgF / 250 N

M3-100

Force gauge, 100 lbF / 50 kgF / 500 N

M3-200

Force gauge, 200 lbF / 100 kgF / 1000 N

M3-500

Force gauge, 500 lbF / 250 kgF / 2500 N

Additional items to consider

CERT

Certificate of calibration with data

15-1005

MESUR^®gauge Plus software

AC1111

Spare USB cable

AC1118

Spare rechargeable battery

AC1030

Spare AC adapter, 110V

AC1031

Spare AC adapter, 220V EUR

AC1032

Spare AC adapter, 220V UK

AC1035

Spare AC adapter, 220V AUS

AC1052

Mounting plate kit

All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V), or 'A' for Australian plug (220V). Example: M3-20E, M3-100U, M3-500A

Series 3 Basic Digital Force Gauges

Fetures of Series 3 Basic Digital Force Gauges

Specification of Series 3 Basic Digital Force Gauges

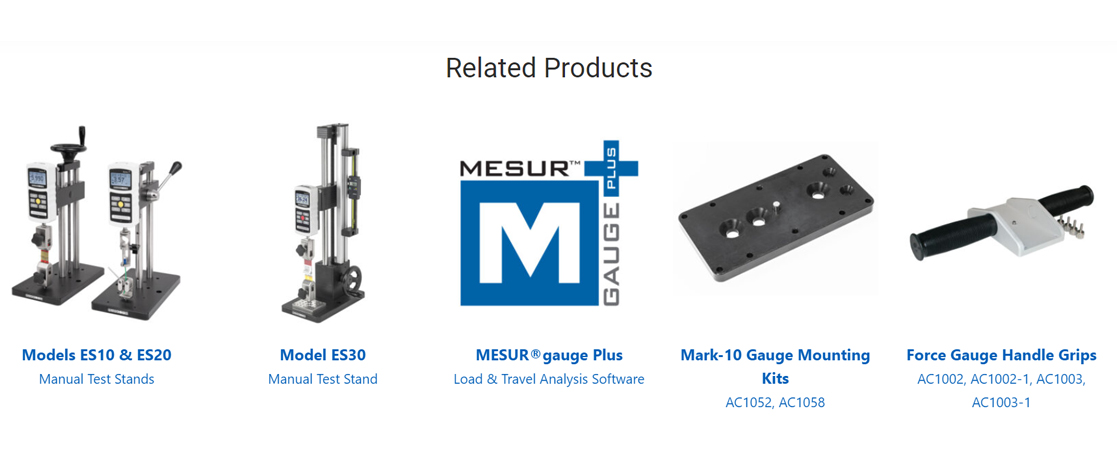

Related Products of Series 3 Basic Digital Force Gauges
