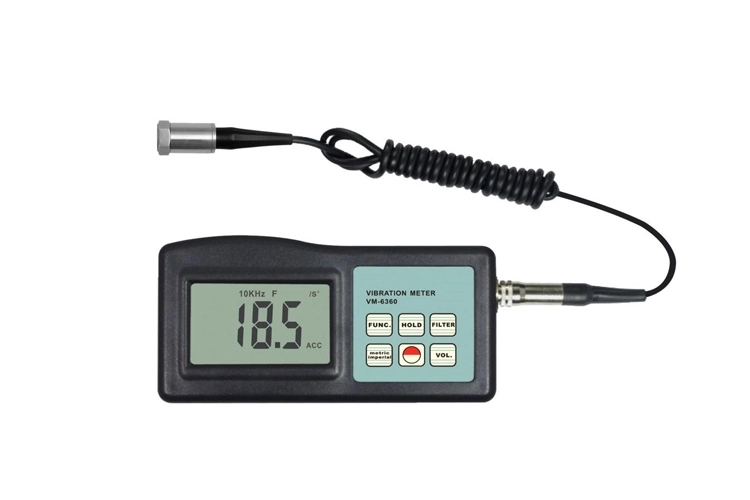

VM6360 Vibration Tester

Name: VM6360 Vibration Tester
Brand: Beijing Lanetech Square Co., Ltd.

VM6360 is a vibration tester that can test acceleration, velocity, and displacement. It can test motors, fans, pumps, compressors, and machine tools. Specially designed for the site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.

Send Mail

Application of VM6360 Vibration Tester

The tester is used for measuring motion periodically. It checks the imbalance and deflection of moving with machinery. It fit for measuring various mechanical vibration specifically. It provides the data for the quality control, running time and equipment upkeep.

Features of VM6360 Vibration Tester

Meet ISO 2954, used for periodic measurements, to detect imbalanced, misalignment and other mechanical faults with rotating machines.
Specially designed for easy vibration measurement of all rotating machinery for quality control, routine maintain, and predictive maintenance purposes on spot.
Individual good quality accelerometer with accurate and repeatable measurements.
Wide frequency range (10Hz~10kHz) at acceleration mode.
Optional headphones for choosing as electronic stethoscope.
Having condition monitoring function.
Use USB/RS-232 data output to connect to PC.
Provide Bluetooth data output option.

Specification of VM6360 Vibration Tester

Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank	Rev(rpm)	H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Quality Rank	Rev(rpm)	80<H<132	132<H<225	225<H<400
Normal	600~3600	1.8	2.8	4.5
Good(R)	600~1800	0.71	1.12	1.8
Good(R)	1800~3600	1.12	1.8	2.8
Excellent(S)	600~1800	0.45	0.71	1.12
Excellent(S)	1800~3600	0.71	1.12	1.8

Sensor	Piezoelectric Transducer
Measuring Range	Acceleration	0.1m/s²~400m/s²Equivalent Park
	Velocity	0.01mm~400mm/s True RMS
	Displacement	0.001mm~4.0mm Equivalent Peak-peak
Frequency Range	Acceleration	10Hz~10kHz
	Velocity	10Hz~1kHz
	Displacement	10Hz~1kHz
Accuracy	5% of Reading+2 digits
Operating Conditions	Temperature	0ºC~50ºC
	Humidity	<90%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Dimensions	124mmx62mmx30mm
Weight	120g(Not Including Batteries)
Standard Accessories	Main Unit
	Piezoelectric Transducer
	Powerful Rare Earth Magnet
	Probe(Cone)&Probe(Spherical)
	Carrying Case(B04)
	Manual Book
Optional Accessories	Headset
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software
