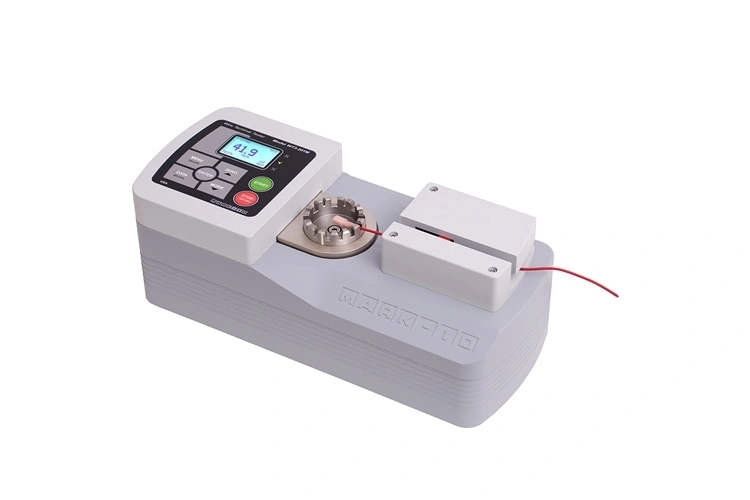

The WT3-201M tester meets a wide array of standards for destructive testing, including those set by UL, ISO, ASTM, SAE, MIL, among others. It is also capable of performing non-destructive tests, such as applying a specific load or maintaining that load for a predetermined duration, in accordance with UL 486A/B guidelines. The device features programmable pass/fail criteria, complemented by visual indicators in red and green, as well as audio alerts, to easily identify samples that do not meet specifications.
This tester is versatile, accommodating a broad range of insulation types and wire sizes up to AWG 3 (0.25 inches [6.3 mm] OD). Mark-10 offers a pre-purchase evaluation service for samples, ensuring compatibility and satisfaction. The auto-start function initiates testing as soon as a wire sample is in place. In the event of a sample breakage, the tester is designed to auto-reverse, capture and store the peak force, and reset the display to zero, all automatically, thus enhancing test efficiency. The inclusion of a Profiles feature allows for the storage and recall of multiple test setups, streamlining the testing process further.
The device is equipped with internal storage for up to 2,000 readings, each timestamped with the date and time. Data exportation to a PC or another data collector is facilitated through USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
Included with the WT3-201M is the MESUR® Lite data acquisition software, which is adept at compiling both continuous and single-point data. The software also supports a one-click export function to Excel for advanced data analysis and manipulation.
Measures real-time and peak force values;
Selectable test speed, w/high speed approach and reverse;
Auto-start upon sample insertion;
Auto-reverse at sample break or load;
USB, RS-232, Mitutoyo (Digimatic), and analog outputs;
Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes;
2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional);
Password protection prevents unauthorized changes;
Pass / fail indicators, audio alerts, and outputs;
Save and recall up to 500 profiles for various test requirements (optional function) Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions);
Date / time stamp for all saved data (optional function);
Capacity x Resolution | 200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN |
Accuracy | ±0.2% of full scale |
Wire gauge range | AWG30 - AWG 3 [0.01 - 0.25 in (0.3 - 6.3 mm) dia.] |
Sample length range | Minimum 6.5 in [165 mm], excluding termination |
Max. elongation | 1.7 in [43 mm] |
Speed range | Test speed: 0.4 - 12.0 in/min [10 - 300 mm/min] |
Speed setting accuracy | ±0.2% |
Speed variation with load | ±0% [Stepper motor driven] |
Power | Universal input 80-240 VAC, 50/60 Hz |
Sampling rate | 7,000 Hz |
Outputs | USB / RS-232: Configurable up to 115,200 baud. |
Overload protection | Motor stops at 110% of full scale of the force sensor (display shows “OVER” at 110% and above) |
Weight | 26.5 lb [12.0 kg] |
Shipping weight | 33 lb [15.0 kg] |
Environmental requirements | 40 - 100°F, max. 96% humidity, non-condensing |
Warranty | 1 years (see individual statement for further details) |
Country of origin | USA |
Model | Description |
WT3-201M | Wire terminal tester, 200 lbF, 110V* |
Optional Functions
WF010 | Save multiple profiles |
WF011 | Pull to load |
WF012 | Load holding |
WF013 | Date & time stamp |
WFCOMP | Complete options package |
Additional items to consider
CERT | Certificate of calibration with data |
15-1004 | MESUR®gauge software |
WT3004-1 | Carrying case for WT3-201M |
WT3002 | Ring terminal fixture for WT3-201M |
WT3003 | Machinable blank terminal fixture |
AC1049 | Calibration kit for WT3-201 / WT3-201M (weights not included) |
AC1109 | Cable, WT3-201M to RS-232 |
AC1111 | Spare USB cable |
* Add suffix 'E' for Euro cord (220V),'U' for UK cord (220V) or 'A' for Australian cord (220V). Ex: WT3-201ME
