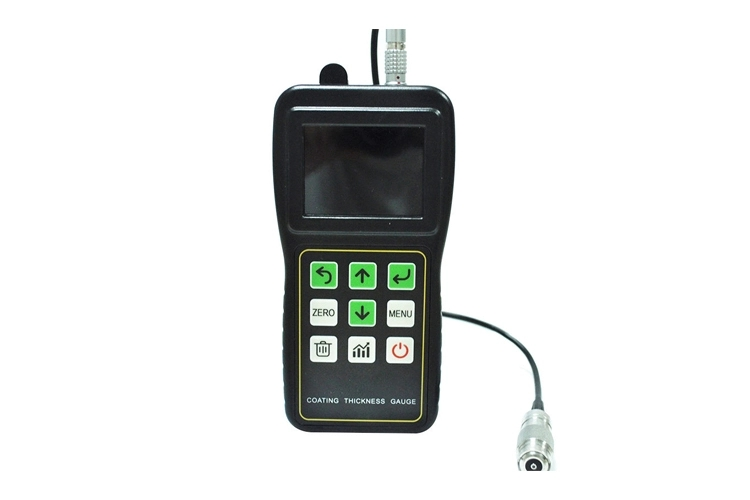

CT200 Coating Thickness Gauge

Name: CT200 Coating Thickness Gauge
Brand: Beijing Lanetech Square Co., Ltd.

This tester is a split coating thickness gauge, which integrate magnetic and eddy current testing models. It can measure coating thickness quickly, without damage. The testing is high accurate. It can be used in both laboratory and project site. It is widely used in metal processing, chemical industry, Goods and commodity inspection, electroplating, spraying, oil pipeline corrosion protection, aluminum profile, steel structure and other many industries. It is also used in shipbuilding industry, aerospace industry, electric power industry, boiler period inspection, technical and safety supervision etc.

Send Mail

Features of CT200 Coating Thickness Gauge

Two thickness measuring methods of magnetic and eddy current are used. The first one, it can measure the thickness of the non-magnetic coating layer on the magnetic metal substrate. The second one, it can measure the thickness of the non-conductive coating layer on the non-magnetic metal substrate.
There are two measuring modes single or continuous. Single mode: high-precision measurement mode can average multiple measurements and automatically filter suspicious values to ensure more accurate and stable testing values; Continuous mode: fast measurement can realize real-time scanning function to save time.
Having temperature compensation function: The domestic leading real-time temperature compensation technology can automatically compensate the measurement error which is caused by the environment temperature and the temperature change of the probe, making the measurement values more accurate.
There are 5 statistics: mean value (MEAN), max. value (MAX), min. value (MIN), Number of measurement (No.), standard deviation (S.DEV).
Split body (connected between sensor and instrument by a lead wire), no need to replace probe, it can realize automatic conversion between iron and aluminum.
Supporting real-time upload of coating thickness via Bluetooth.

Parameters of CT200 Coating Thickness Gauge

Working principle		Magnetic induction	Eddy currents
Probe type		F Probe	N Probe
Measurement range(μm)		0~1500	0~1500 Chromium plating on copper 0-40
Lower limit of resolution(μm)		0.1μm/0~99μm/	1μm/>99μm/
Indication value	One-point calibration(μm) (H refers to the actual thickness value of working piece)	±(3%H+1)	±(3%H+1.5)
Indication value	Two-point calibration(μm) (H refers to the actual thickness value of working piece)	±[(1~3)%H+1]	±[(1~3)%H+1.5]
Test Condition	Min. radius of curvature (mm)	Convex 3	Convex 3
	Diameter of min. area (mm)	7	7
	Critical thickness of matrix(mm)	0.5	0.3

Standard Delivry of CT200 Coating Thickness Gauge

Name	Quantity
Main Body	1 Pcs
Test Blocks	Iron base1 Pcs; Aluminum base1 Pcs
Thickness measuring foil	5 Pcs
Manual	1 Set
