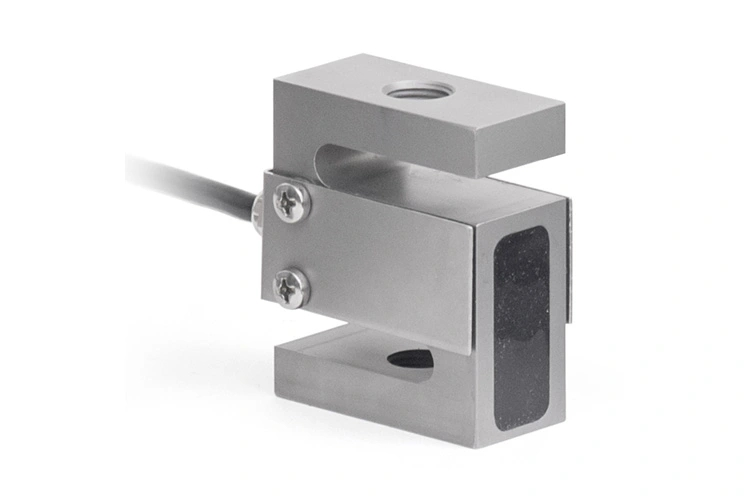

MR01 Force Gauge Sensor

Name: MR01 Force Gauge Sensor
Brand: Beijing Lanetech Square Co., Ltd.

The R01 Series robust smart sensors are engineered for tension and compression force measurement, suitable for a wide range of industrial applications. Their sturdy S-Beam construction, featuring threaded holes on both sides, supports various setup configurations.

These sensors offer capacities ranging from 50 to 10,000 lbF [250 N to 50 kN] and are designed to seamlessly integrate with Mark-10 indicators (which are available separately) using the innovative Plug & Test® technology.

Whether part of an existing setup or paired with a Mark-10 test stand, these sensors provide versatile integration options.

For compatibility with specific Mark-10 test stands, such as the EMS1500, EMS750, EMS303, and EMS303H, add the suffix -1 to the model number when ordering an R01 sensor (for example, MR01-1000-1).

Send Mail

Fetures of MR01 Force Gauge Sensor

Member of the Plug & Test® family of interchangeable sensors and indicators;
Measures tensile and compressive forces;
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 1 years.

Specification of MR01 Force Gauge Sensor

Accuracy	± 0.15% of full scale + value
Weight	MR01-50 – MR01-300: 1 lbs /0.5 kg/ MR01-500 – MR01-1000: 2 lbs /0.9 kg/ MR01-2000 – MR01-10000: 3 lbs /1.4 kg/
Shipping weight	MR01-50 – MR01-300: 2 lbs /0.9 kg/ MR01-500 – MR01-1000: 3 lbs /1.4 kg/ MR01-2000 – MR01-10000: 4 lbs /1.8 kg/
HS code number	MR01 /all models/: 9024900000 AC1018, AC1062: 9024800000
ECCN	EAR99
Country of origin	USA

MODELS

Model	Description
MR01-50	Sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N
MR01-100	Sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N
MR01-200	Sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN
MR01-300	Sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN
MR01-500	Sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN
MR01-750	Sensor, 750 lbF / 12000 ozF / 375 kgF / 3750 N / 3.75 kN
MR01-1000	Sensor, 1000 lbF / 16000 ozF / 500 kgF / 5000 N / 5 kN
MR01-1500	Sensor, 1500 lbF / 24000 ozF / 750 kgF / 7500 N / 7.5 kN
MR01-2000	Sensor, 2000 lbF / 32000 ozF / 1000 kgF / 10000 N / 10 kN
MR01-5000	Sensor, 5000 lbF / 2500 kgF / 25000 N / 25 kN
MR01-10000	Sensor, 10000 lbF / 5000 kgF / 50000 N / 50 kN

Add“-1” for short cable, for ESM1500, ESM750, ESM303, and ESM303H testing stands. Ex: MR01-1000-1. Test stand mounting hardware is included.

Note that MR01-5000 and MR01-10000 cannot be watched to the ESM303 or ESM303H test stand.

Additional Items to Consider
AC1018	Mounting kit, R01/R03 to force testing stand (except ESM303, ESM303H, ESM1500, ESM1500S, ESM750S, and TSB100)
AC1062	Mounting kit, R01 / R03 / indicator to ESM303

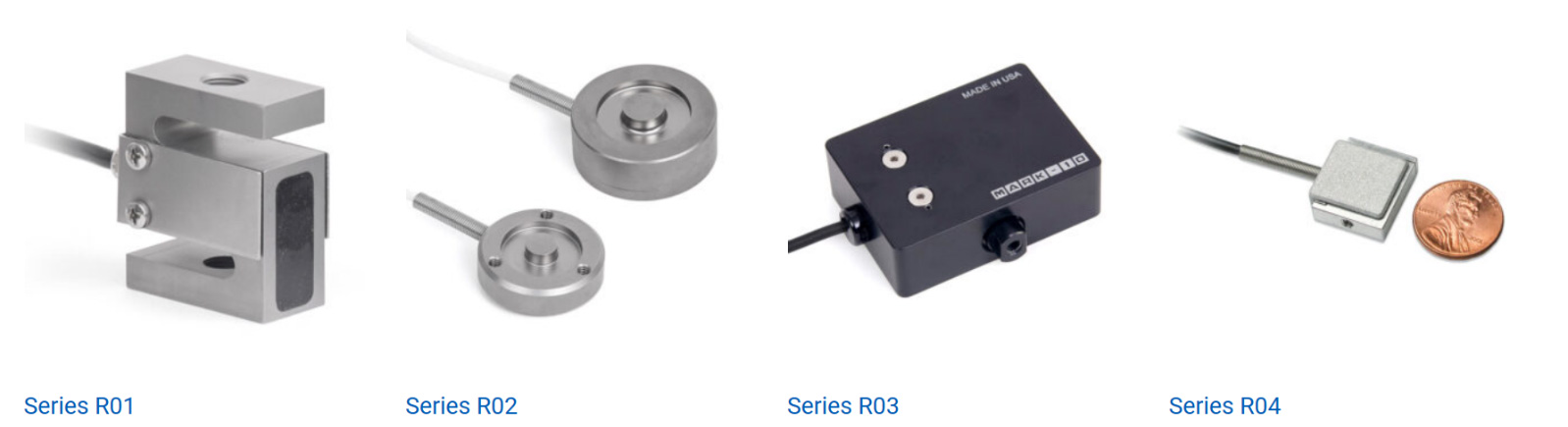

Related Products of MR01 Force Gauge Sensor
