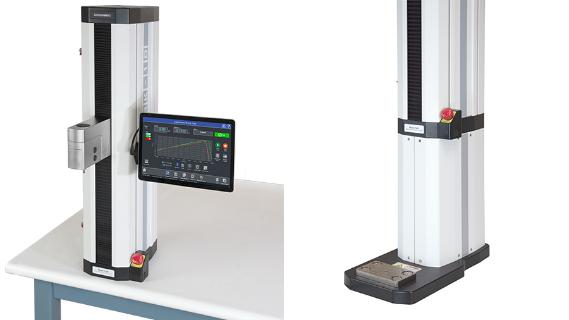

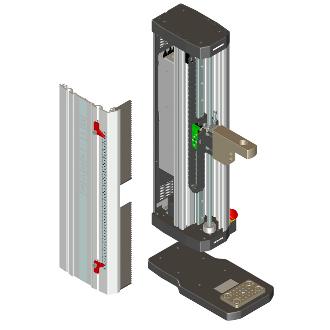

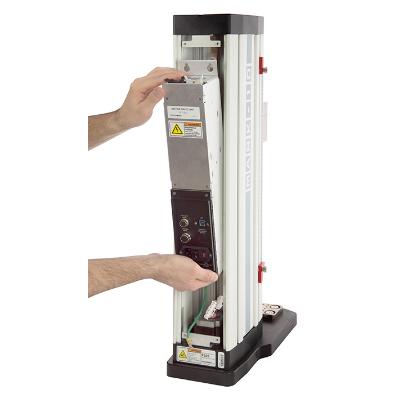

F105/F305/F505/F505H Advanced Test Stand Frame

Load capacity*:

100 lbF
[0.5 kN]

300 lbF
[1.3 kN]

500 lbF
[2.2 kN]

Maximum travel:

18.0 in
[457 mm]

Speed range:

0.02 - 45 in/min
/0.5 - 1,100 mm/min/

Load accuracy
(% of full scale)

Test frame: ±0.1%

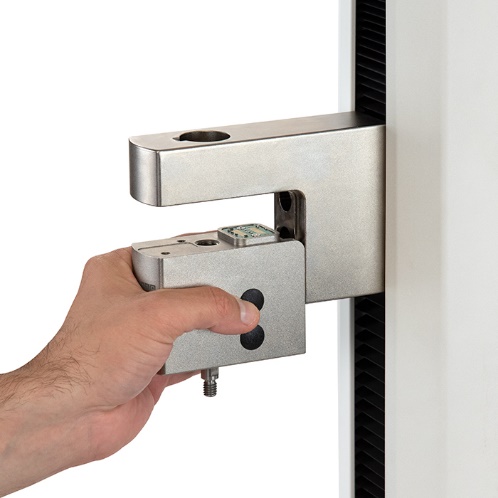

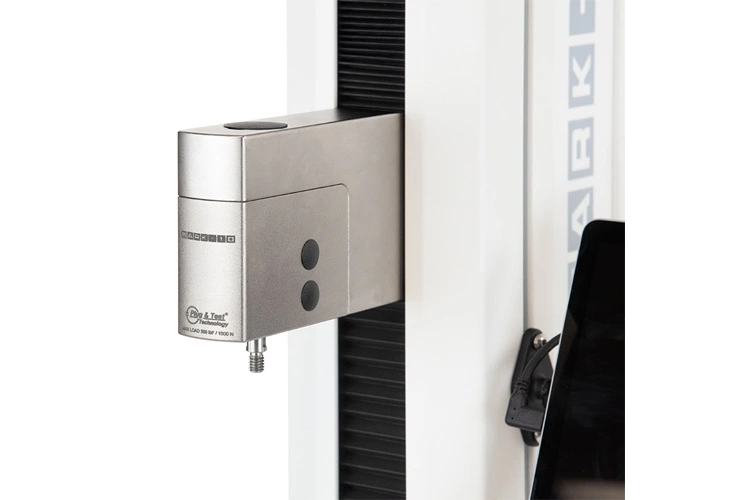

Force sensor alone: Series FS05: ±0.1% | Series R06: ±0.15% |

Series R07: ±0.15%

Peak sampling rate:

20,000 Hz

Data acquisition rate:

1,000 Hz

Speed accuracy:

±0.2% of setting, virtually no variation with any load

Distance accuracy:

±0.002 in /0.05 mm/, all load, factory-compensated

Distance resolution:

0.0005 in /0.01 mm/

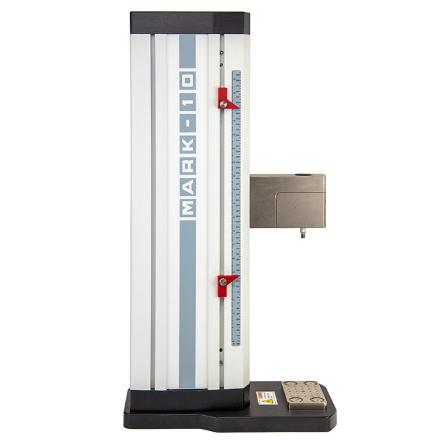

Limit switch repeatability:

±0.001 in /0.03 mm/

Overload protection:

Motor stops at 120% of full scale of the force sensor

Power:

Universal 100-240 VAC, 50/60 Hz, 120W

Fuse type:

1.2 A, 250V, 3AG, SLO BLO

Weight (test frame only):

60 lb
/27 kg/

70 lb

/32 kg/

Shipping weight:

75 lb
/34 kg/

85 lb

/39 kg/

Environmental conditions:

Indoor use only;

Up to 6,500 ft /2,000 m/ above sea level;

Temperature: 40 - 95°F /5 - 35°C/;

Humidity range: up to 80% relative humidity 31°C,

decreasing linearly to 50%;

relative humidity at 40°C, non-condensing;

Mains supply voltage range up to ±10 % of the nominal voltage

Up to the levels of Overvoltage Category II;

Up to Pollution Degree 2;

Conformance:

CE, UKCA

Warranty:

1 years

Country of origin

USA

F105-IMT

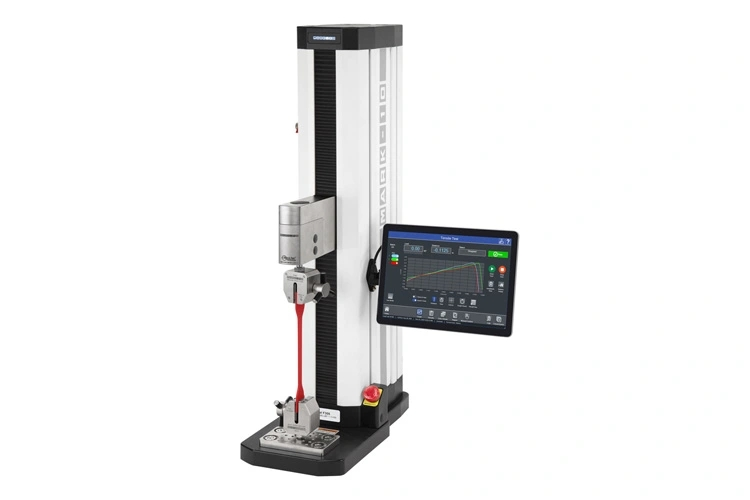

Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 100 lbF / 0.5 kN, 110V*

F305-IMT

Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 300 lbF / 1.3 kN, 110V*

F505-IMT

Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 500 lbF / 2.2 kN, 110V*

F505H-IMT

Test frame with IntelliMESUR® pre-loaded tablet control panel, horizontal, 500 lbF / 2.2 kN, 110V*

F305-IM

Test frame with IntelliMESUR® software, single license, vertical, 300 lbF / 1.3 kN, 110V*

F505-IM

Test frame with IntelliMESUR® software, single license, vertical, 500 lbF / 2.2 kN, 110V*

F505H-IM

Test frame with IntelliMESUR® software, single license, horizontal, 500 lbF / 2.2 kN, 110V*

IMF002

Materials testing calculations module for IntelliMESUR®

AC1094-1

Single column extension, 6 in / 150 mm, F105 / F305 / F505

AC1094-2

Single column extension, 12 in / 300 mm, F105 / F305 / F505

AC1094-3

Single column extension, 24 in / 600 mm, F105 / F305 / F505

AC1094-4

Single column extension, 6 in / 150 mm, F505H

AC1094-5

Single column extension, 12 in / 300 mm, F505H

AC1094-6

Single column extension, 24 in / 600 mm, F505H

AC1095-1

Double column extension, 6 in / 150 mm, F105 / F305 / F505

AC1095-2

Double column extension, 12 in / 300 mm, F105 / F305 / F505

AC1095-3

Double column extension, 24 in / 600 mm, F105 / F305 / F505

AC1085

Control panel tabletop mounting kit

AC1092-1

Shield, 51.9 in height

AC1092-2

Shield, 34.4 in height

AC1093

USB hub

CERT-DS

NIST-traceable certificate of calibration, distance and speed
