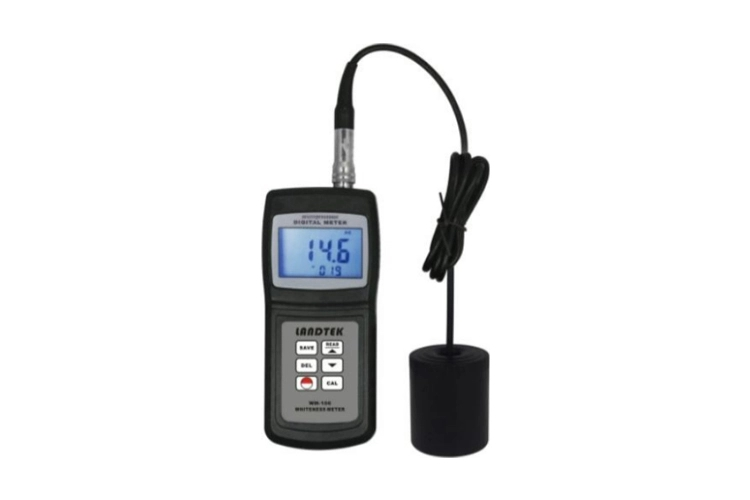

WM-106 Whiteness Meter

Name: WM-106 Whiteness Meter
Brand: Beijing Lanetech Square Co., Ltd.

The Whiteness Meter is designed to accurately determine the whiteness level of objects or powders that have a flat surface. Its application is extensive and includes the measurement of whiteness in textiles, printing and dyeing materials, paints, chemical construction materials, paperboard, plastic products, white cement, ceramics, enamel, talc powder, starch, flour, salt, detergent, cosmetics, and various other substances. This tool is essential for ensuring the quality and standardization of whiteness across a wide range of industries.

Send Mail

Applications of WM-106 Whiteness Meter

Whiteness Meter measures the whiteness value of object or powder with flat surface directly. It can be widely used in whiteness measurement of textile printing and dyeing, paper board, plastic products, white cement, ceramics, enamel, talc powder, starch, flour, salt, detergent, cosmetics, paint, chemical building materials, and other substances.

Principle of WM-106 Whiteness Meter

The device is comprised of a Light Source, Optical System, Detection System, Data Processing, and Display System. It calculates whiteness using the blue light whiteness formula R457.

Featuring a long-lasting LED light source at 457nm, this apparatus aligns with the JJG 512-2002 National Metrological Whiteness Meter Verification Regulation’s standards for light sources. The apparatus determines whiteness through the photoelectric effect. It gathers the diffuse reflectance Radiant Brightness Energy Value from the surface of the sample using an optical cell. This value is then boosted by a precision auto-zeroing operational amplifier, processed through a calibration circuit for energy adjustment, and the whiteness level of the sample is immediately presented on the display.

Specifications of WM-106 Whiteness Meter

Model Name		WM-106
Measure Range		0~120
Resolution		0.1
Illumination Condition		45/0
Illuminant Value		LED 457nm
Whiteness Formula		Blue Light Whiteness WB=R457
Measuring Aperture value		≤15mm
Zero Drift		≤0.1
Stability of Display		≤0.5
Repeatability		≤0.1
Operating	Temperature	0~40°C
Condition	Humidity	< 85%RH
Power Supply		4x1.5V AAA (UM-4) Battery (Optional AC Power)
Size	Main Unit	156x67x28 mm
	Sensor	Ф44x55 mm
Weight		200 g

Accessories of WM-106 Whiteness Meter

Model	WM-106
Standard Accessories	Main Unit
	Sensor
	Standard White Board
	Optical Cleaning Cotton Cloth
	Carrying Case
	Operation Manual
Optional Accessories	Constant Pressure Powder Forming Apparatus
	Constant Pressure Powder Forming Apparatus
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software
