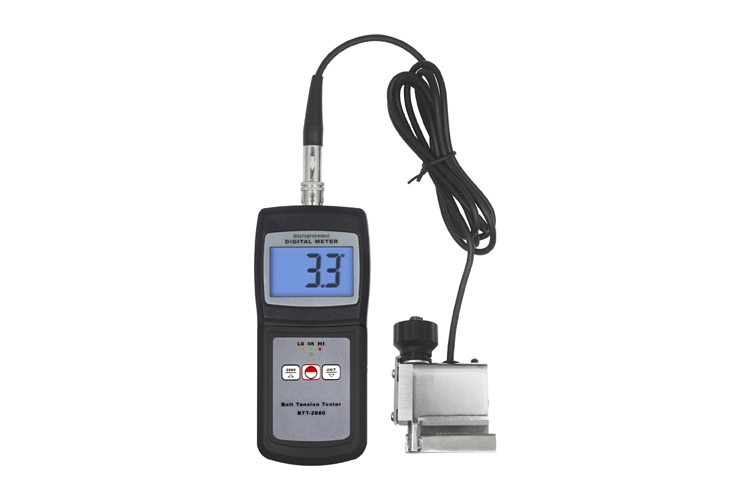

Primarily utilized for measuring the tension in belts, this versatile tool is also capable of assessing the tension in various objects, including tapes and wires. Its applications extend across multiple industries, making this hardness measuring machine an indispensable instrument in the fields of automobile manufacturing, textile production, and the fabrication of cables, wires, and plastic films. This wide-ranging applicability underscores its importance in ensuring the quality and performance of products in these sectors.
Mainly used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, printing.
As a type of portable meters, it can be used to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines.
Tension can be displayed in a variety of standard and manufacturers' units.
Tension limits can be set into the instrument, either manually or automatically. During belt tension measurement and adjustment, the belt tension is displayed. A visual and audible indication of whether the tension is within or outside the set limits is also given. This avoids the user having to read the display whilst adjusting the belt.
Use RS-232 data output to connect with PC.
Provide Bluetooth data output choice.
Display | LCD |
Tension Indicator | Colored LED Indication of High, Low and OK |
Measurement | 0~750 N ( Newtons ) |
Range | 0~120 lb ( Pounds ) |
0~77 kg ( Kilograms ) | |
0~114 Seems | |
Belt Width | Up to 36 mm |
Overload Alarm | 750N |
Maximum Load | 850N |
Resolution | ±1 (Least Significant Digit of Units) |
Accuracy | ±5% of full-scale |
Data Output | USB, RS-232, Bluetooth |
Audible Warning | Piezoelectric Sounder |
Power Supply | 4x1.5V AAA (UM-4) Battery |
Dimensions | 135x62x33 mm |
Weight | 335 g ( Not Including Batteries ) |
Standard | Main Unit |

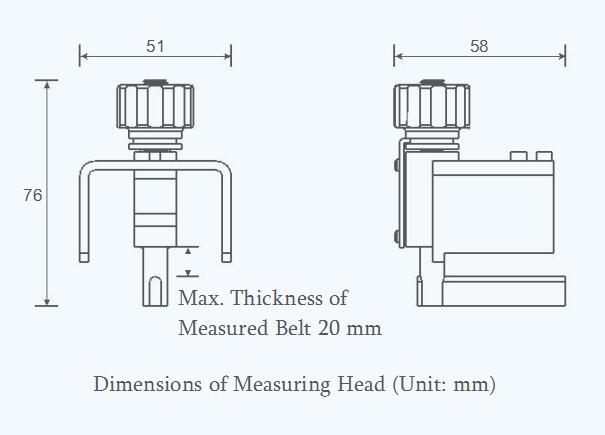

Accessories | Measuring Head |
Carrying Case(B04) | |
Operation Manual | |
Optional | RS-232C Data Cable with Software |
Accessories | Bluetooth Data Adapter with Software |
