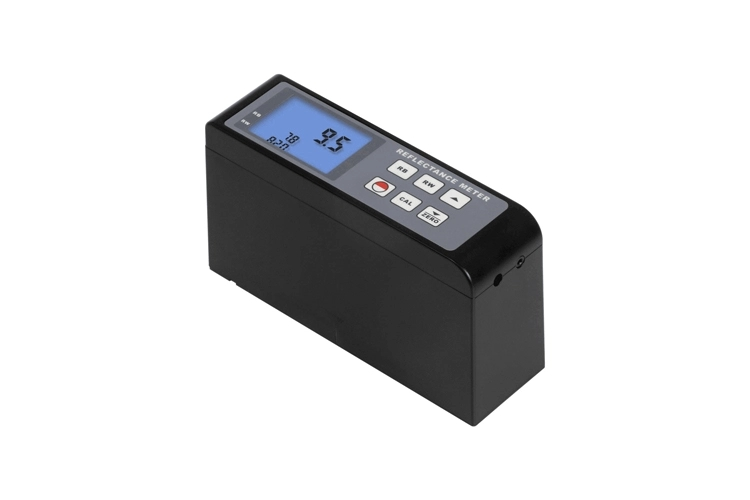

RM-206 Reflectance Meter

Name: RM-206 Reflectance Meter
Brand: Beijing Lanetech Square Co., Ltd.

This device is capable of assessing not just the transparency level of coatings, grease, film, and plastic products, along with organic materials, but also the reflectivity of solid surfaces, including stereo movie screens. Its applications are broad, encompassing the fields of coatings, pigments, inks, plastics, printing, dyeing, leather, and film screenings, among others. It serves as a vital tool for the inspection and management of product quality or adherence to standards across these various industries.

Send Mail

Applications of RM-206 Reflectance Meter

It can not only measure the transparency extent of coating, grease, film, plastic products, organic products; but also the reflectivity of solid surface (such as stereo movie screen). It is widely used in coatings, pigments, inks, plastics, printing and dyeing, leather, film screenings and other industries, for product quality or standardized inspection and management.

Features of RM-206 Reflectance Meter

It meets the international standards of ISO3906-1980 (E), ISO3905, ISO2814, and the national standards of GB/T13452.3-92, GB9270-88, GB5211.17-88.
Use RS-232 data output to connect with PC.
Provide Bluetooth data output choice.
This instrument is composed of main unit, standard board (a black one and a white one), testing board (a black one and a white one).
When the reflected light of the sample acts on the surface of the photocell, an electric signal is input into the DC amplifier and amplified for reading on the display.

Specifications of RM-206 Reflectance Meter

Range	0~100
Resolution	0.1
Accuracy	±1
Repeatability	0.3
Measuring Area	7x14mm (Ellipse)
The display data is in direct proportion to the reflected light.
The spectral sensitivity of the instrument is approximately equal to the product of Sc(λ) and y(λ).
Operation Temp.	0~40°C
Operation Humidity	<85%RH
Power Supply	3.7 V Lithium Ion Rechargeable Battery
Size	141x45x79mm
Weight	310g (Including Batteries)
Standard Accessories	Main Unit
	Standard Board (Black & White)
	Testing Board (Black & White)
	Power Adapter
	Optic Cleaning Cloth
	Carrying Case
	Operation Manual
Optional Accessories	USB Data Cable with Software
Optional Accessories	Bluetooth Data Adapter with Software
