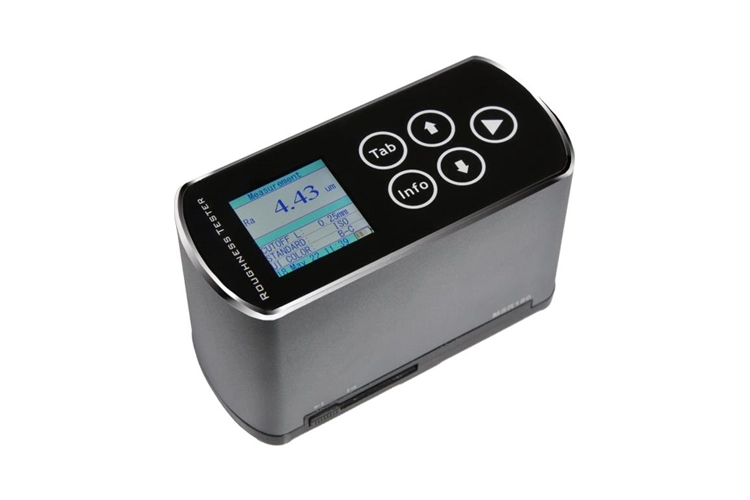

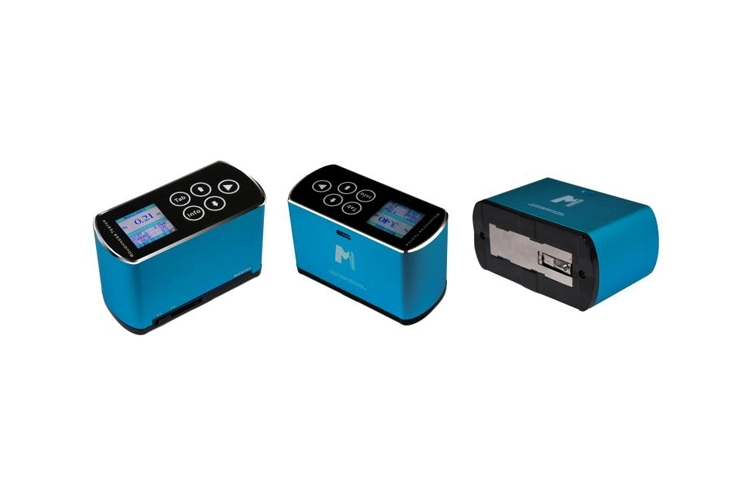

SR160 Surface Roughness Tester

SR160 Portable Roughness Tester is a new generation of pocket-sized surface roughness tester . It has many advantages with high measurement accuracy, wider measurement range, easy operation, stable measurement, etc. It can be widely used in the detection of various metal and non-metal machines’ surfaces in spots. The instrument is a pocket-sized instrument with integrated sensor hosted. It is small and it is more suitable for using on the production site.


  • surface roughness tester
  • surface roughness measurement instrument
  • surface roughness tester for sale
  • surface roughness meter
  • surface roughness tester
  • surface roughness measurement instrument
  • surface roughness tester for sale
  • surface roughness meter

Features of SR160 Surface Roughness Tester

  • Create the smallest instrument in the NDT history

  • Innovative piezoelectric sensor

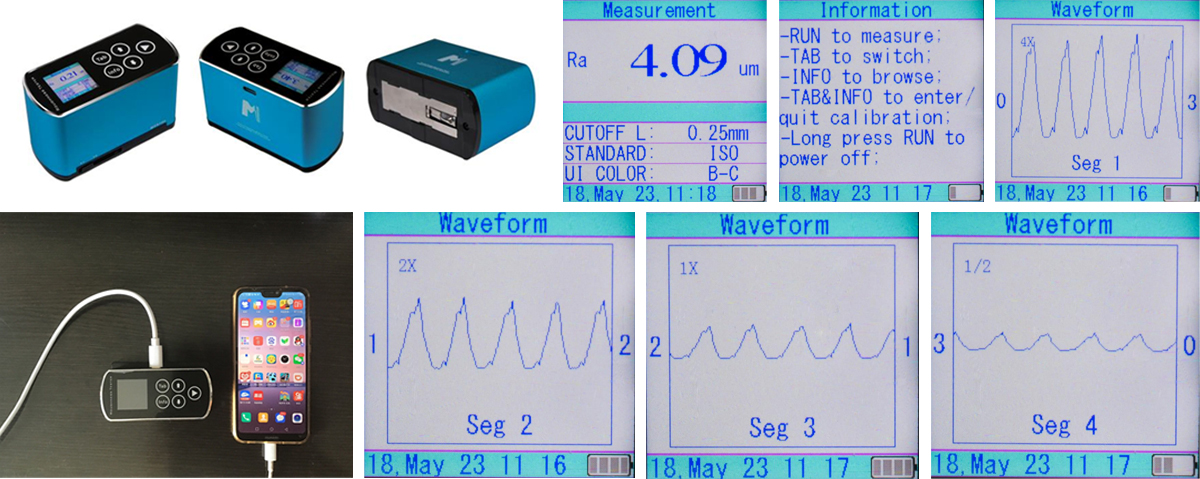

  • Graphic display of full measurement

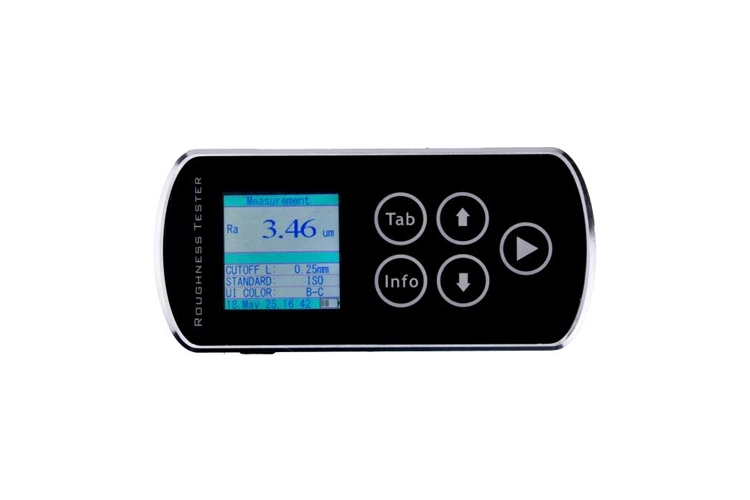

  • Touch screen with easy operation

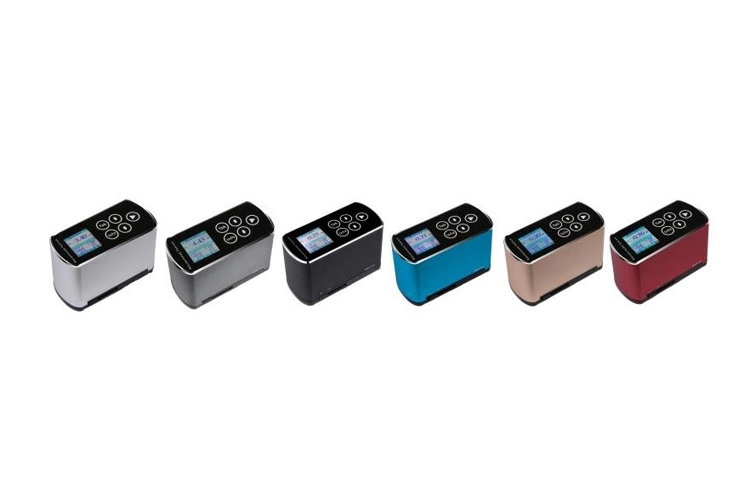

  • 6 colors choice for different users

  • 240x240 high solution display screen

  • Aluminum mold design makes durable and better anti-electromagnetic interference ability




Parameter of SR160 Surface Roughness Tester

Parameters

Ra, Rz, Rq, Rt

Range

Ra, Rq 0.05-20um

Rz, Rt 0.1-50um

Accuracy

±10%

Resolution

0.01um

Probe

Type

Piezoelectric

Stylus radius/angle

10um/90°

Stylus material

Diamond

Measuring Force

5mN

Measuring Unit

Um/uin

Cut off

0.25mm/0.8mm Auto

Assessment Length

4 x Lamda

Traverse speed

0.75mm/s

Power

Built-in Rechargeable battery

Instrument Dimension

90mmx42mmx54mm

Weight

210g

Packing Dimension

200mmx130mmx80mm

Total Weight

530g




Standard Delivery of SR160 Surface Roughness Tester

Main unit
Calibration block
AD/DC adapter and data line
