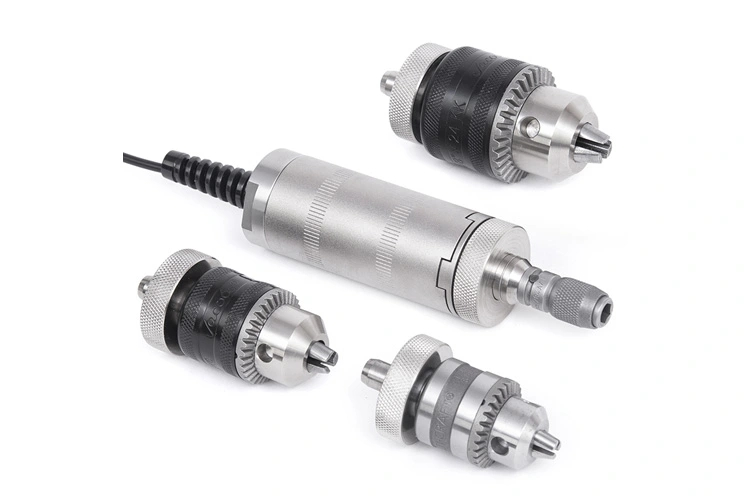

MR51 Torque Sensors

The MR51 torque sensor offers an exceptional solution for a wide range of bi-directional torque testing applications, accommodating various sample sizes with ease. It features three interchangeable chuck capacities and a bit holder, enhancing its versatility. Designed with superior overload protection, the MR51 ensures reliability and durability in demanding testing environments. It is available in a broad range of capacities, from 10 ozFin to 100 lbFin (approximately 7 to 1,150 Ncm), making it suitable for a diverse array of testing requirements. This adaptability and robustness make the R51 an ideal choice for professionals seeking accurate torque measurement solutions.


  • 6 axis force torque sensor
  • 6 axis force torque sensor

Fetures of MR51 Torque Sensors

  • Interchangeable sensors and indicators of Plug and testing

  • Overload protection;

  • Chucks is changeable internally;

  • Traceable certificate of calibration with data is NIST classification freely

  • Warranty: 1 years



Specification of MR51 Torque Sensors

Accuracy± 0.20% of full scale + displayer
Weight1.4 lb /0.6 kg/
Shipping weight3 lb /1.4/

Country of original

USA

Ordering Information

Model

Description

MR51-10Z

Sensor, 10 ozFin / 700 gFcm / 7 kgFmm / 70 Nmm / 7 Ncm

MR51-20Z

Sensor, 20 ozFin / 1400 gFcm / 14 kgFmm / 140 Nmm / 14 Ncm

MR51-50Z

Sensor, 50 ozFin / 3600 gFcm / 36 kgFmm / 350 Nmm / 35 Ncm

MR51-12

Sensor, 12 lbFin / 1 lbFft / 192 ozFin / 135 Ncm / 1.35 Nm

MR51-50

Sensor, 50 lbFin / 4 lbFft / 800 ozFin / 570 Ncm / 5.7 Nm

MR51-100

Sensor, 100 lbFin / 8 lbFft / 1600 ozFin / 1150 Ncm / 11.5 Nm

G1016-1

Jacobs-chuck for R51, 0.028”-0.25” dia.

G1016-2 *

Jacobs-chuck for R51, 0.062”-0.375” dia.

G1016-3 *

Jacobs-chuck for R51, 0.078”-0.5” dia.

G1017

Bit holder for 1/4” hex, for R51

AC1123

Spare-chuck key for G1016-3, size KK

AC1124

Spare-chuck key for G1016-1 and G1016-2, size KGA

* Due to the increased possibility of overload resulting from a higher weight attachment used with a lower capacity torque sensor, these attachments are recommended for use only with an MR51-12 or higher capacity model.

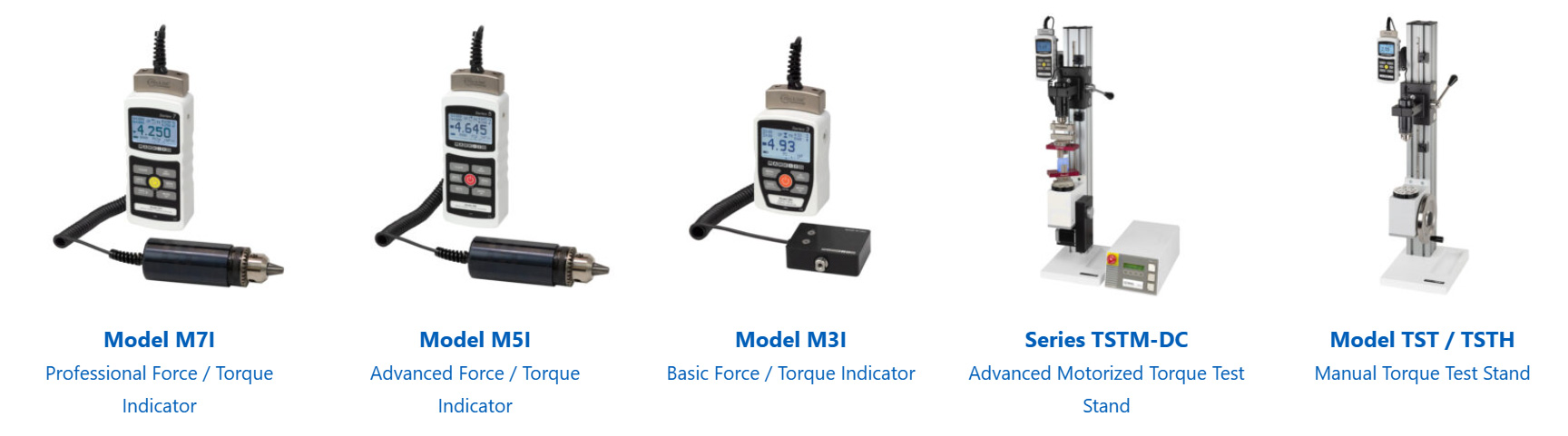

Related Products of MR51 Torque Sensors
