Name: VM6380-3 Three Channel Vibration Tester
Brand: Beijing Lanetech Square Co., Ltd.

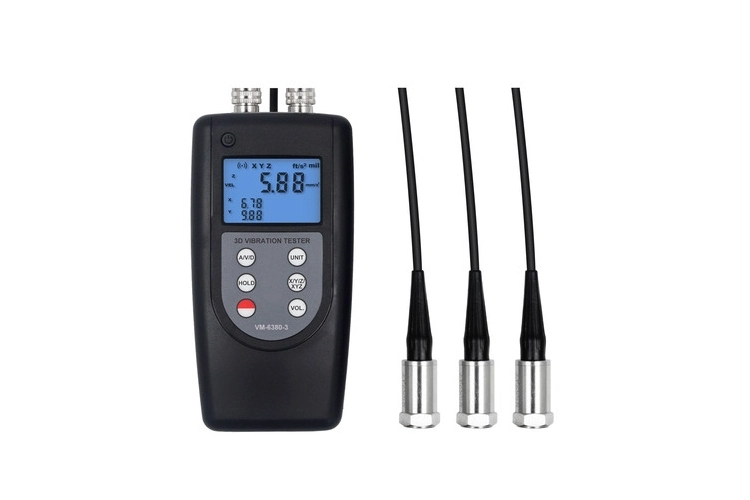

VM6380-3 Three Channel Vibration Tester

VM-6380-3 is a vibration tester that can test acceleration, velocity, displacement. It can check the imbalance and deflecting of moving machinery, motors, fans, pumps, compressors, and machine tools. It is with individual high quality accelerometer for accurate and repeatable measurements.

Features of VM6380-3 Three Channel Vibration Tester

3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.

According to ISO 2954,the machine should be detected periodically, the detecting items include out-of-balance, misalignment ,other mechanical errors.

The main aim is to evaluate rotating machinery’s quality,predictive maintenance period, commissioning on site of vibration condition easily.

Successful catch accurate and repeatable testing value for high quality accelerometer individually.

Acceleration mode is with wide range‘s frequency (10Hz~10kHz) .

Headphones is optional spare part to be as electronic stethoscope.

Select-able Output ways are USB/RS-232 to connect with PC.

Select-able output data by Bluetooth.

Specification of VM6380-3 Three Channel Vibration Tester

Sensor

3 Plezoelectric Transducers

Me asuring Range

Acoeleration

0.1m/S²-400m/s² 0.3ft/s²~1312t/s² 0.0g~40g Equha lent Peak

Velocity

0.01 mm/s-400mm/s 0004inch/s~160inch/sTrue RMS

Displacement

0.001mm~4.0 mm 0.04mil~ 160.0 mil Equivalent Peak-peak

Frequency Range

Acoeleration

10H2~ 10kHz

Velocity

10H2w 1kHz

Displacement

10H2~ 1kHz

Acouraqy

5% of Reading+2 digits

Operating Conditions

Temperature

09C~509C

Humidity

<90%RH

Power Supply

4x 1.5V AAA(UM-4)B attery

Dim ensions

140m mx 73mmx35mm

Weight

415g(Not Induding Batteries)

Standard Acoe ssories

Main Unit

Piezoele ctric Transduers

Powerful Rare Earth Magnet

Probe(Cone)8Probe(Spherica)

Carrying Case(B04)

Manual Book

Optional Acoe ssories

Headset

RS-232CData Cable with Softw are

Bluetooth Data Adapter with Softw are

ISQ/IS2373 Motor Quality Standard Aocording As Vibration Velocity
Quality Rank	Rev(rpm)	H:high of shaf(mm) Maxim um vibration velocity rms(mm/s)
Quality Rank	Rev(rpm)	132< H<225	132< H<225	225<H< 400
Normal	600~ 3600	1.8	2.8	4.5
Good(R)	600~ 1800	0.71	1.12	1.8
Good(R)	1800~ 3600	1.12	1.8	2.8
Excellent(S)	600~ 1800	0.45	0.71	1.12
Excellent(S)	1800~ 3600	0.71	1.12	1.8
