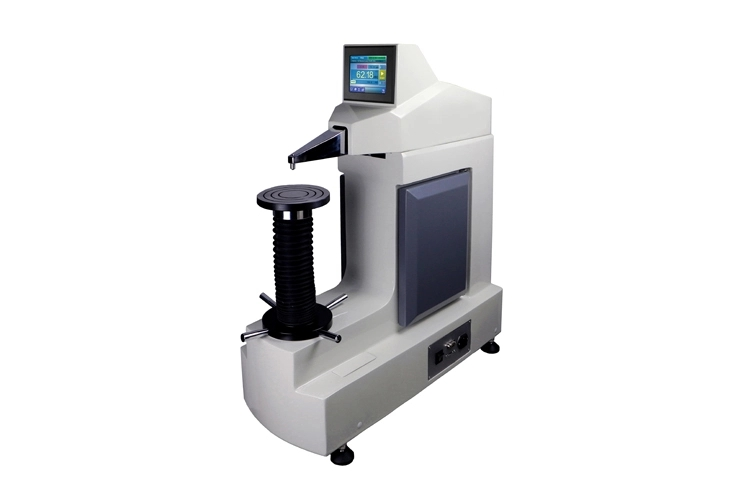

KHT900-M Automatic Rockwell Superficial Hardness Tester

Features of KHT900-M Automatic Rockwell Superficial Hardness Tester

• The test force are applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit replace traditional dead weights. The result is highly accurate measurements at all test loads up to 0.5%.

• Simple plug - and - play tech allows for much more quick and easy installation than traditional weights type machine.

• Manual handle wheel pre-load. Automatic main-load and testing cycle.

• Extended dolphin nose allows vertical test height of 300mm and throat depth of 220mm.

• Integrated casting body with more wide basement leads to permanent stability.

• RS232 and USB port to PC.

• rockwell hardness method


Functions of KHT900-M Automatic Rockwell Superficial Hardness Tester

• Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.

• Horizontal dolphin nose Indenter is suitable also for internal and external testing.

• Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes.

• Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales.

• The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.

• Automatic testing cycle: Lifting of part, pre-loading, loading, dwell, unloading, results will be finished automatically.

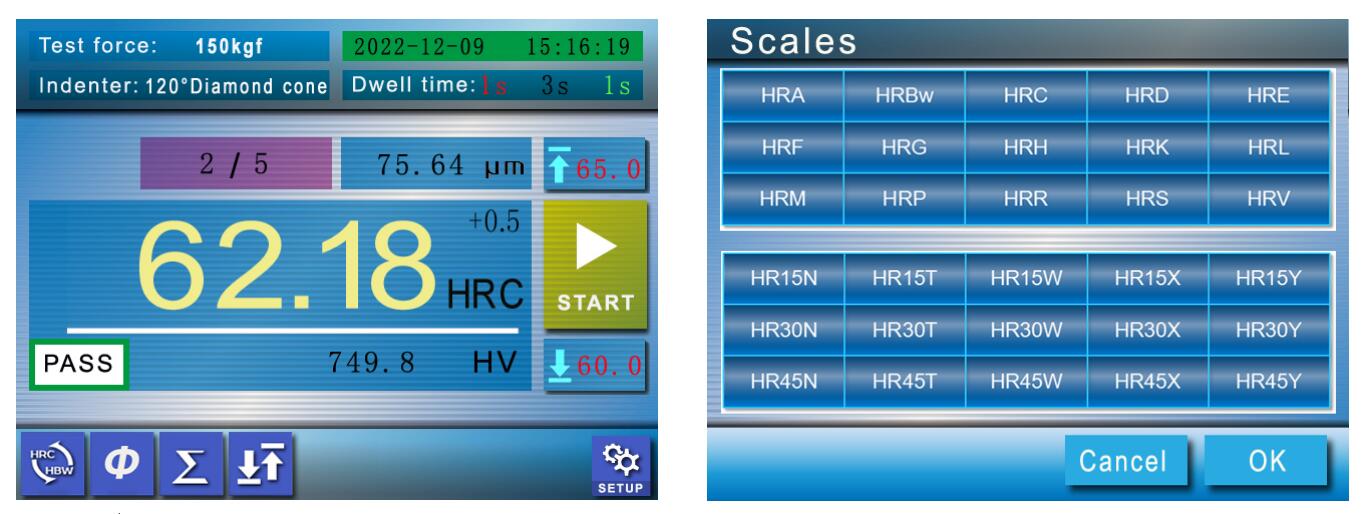

• Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB port.

• Test HR value can be converted to the value of HB, HV, HK and σb value.

• The tester meets all the following standard such as ISO 6508-2, ASTM E18.

Parameters of KHT900-M Automatic Rockwell Superficial Hardness Tester

Standard configuration of KHT900-M Automatic Rockwell Superficial Hardness Tester
