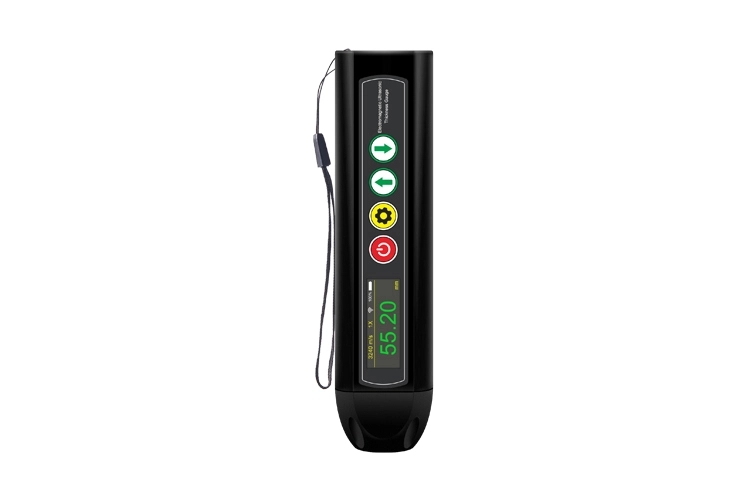

EU100 Eletromagnetic Ultrasonic Thickness Gauge

Name: EU100 Eletromagnetic Ultrasonic Thickness Gauge
Brand: Beijing Lanetech Square Co., Ltd.

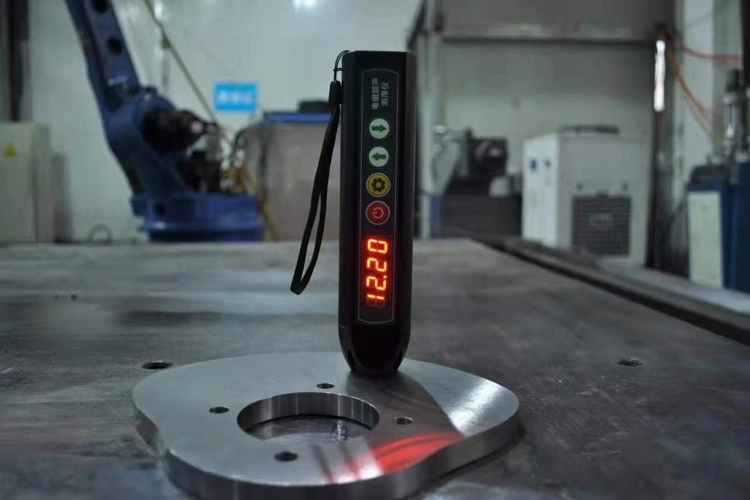

Pen type electromagnetic ultrasonic thickness gauge is an ultra-small non-contact measurement instrument without coupling agent, which can measure the thickness of metal materials at room temperature and high temperature. It is suitable for titanium, aluminum, steel, stainless steel, alloy steel, carbon steel, cast steel, etc.

Send Mail

Features of EU100 Eletromagnetic Ultrasonic Thickness Gauge

Ergonomically optimized design. Compact structure, ultra-small size, easy to carry, fit the sense of grip.
Accurate thickness measurement, measurement through coating, no coupling agent and grinding of workpiece surface are required. Paint, coating and unevenness are allowed on the tested surface.
Various material sound velocities are pre-stored in the instrument, and material sound velocities can be added and deleted dynamically at the same time. The sound velocity calibration increases the temperature compensation function and improves the measurement accuracy.
High Definition LCD color screen display, suitable for a variety of measurement environments under different light levels.
It is equipped with upper computer software to facilitate reading of various data.

Parameters of EU100 Eletromagnetic Ultrasonic Thickness Gauge

Measurement range	1~250mm	Measurement accuracy	0.05mm
Lift-off clearance	0~2.5mm	Adjustable range of sound velocity	1000~9999m/s
Probe frequency	4MHZ	Continuous working time	4h
Environment temperature	-20℃~+50℃	Size and weight	1704035mm 250g
High temperature sound velocity compensation	Automatic compensation	Excitation mode	Permanent magnet
Temperature range of inspected workpiece	-150℃~800℃(Higher temperature can be customized)	Error range	≤10mm,error±0.05mm ＞10mm±(0.01+H/200)mm (H is the thickness of the workpiece)
Probe type	Normal temperature probe is standardly equipped, high-temperature probe is optionally equipped.	Power supply	Lithium battery

Standard Delivery of EU100 Eletromagnetic Ultrasonic Thickness Gauge

Name	Quantity
Host	1
USB charger	1
Test block (carbon steel, stainless steel)	2
Manual	1
Instrument box	1
Certificate	1

Optional Delivery of EU100 Eletromagnetic Ultrasonic Thickness Gauge

Name	Quantity
Industrial PAD	1
mobile phone	1
High temperature probe	1
