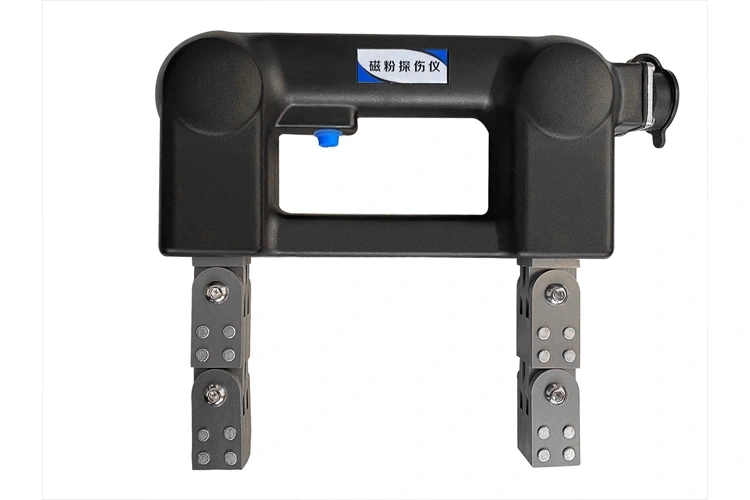

B-100S Magnetic Yoke Flaw Detector

Name: B-100S Magnetic Yoke Flaw Detector
Brand: Beijing Lanetech Square Co., Ltd.

The Magnetic Yoke Flaw Detector boasts a compact and rational design, featuring a small size and lightweight build that enhances its portability. It is adept at performing magnetic particle inspections to identify surface and subsurface defects in ferromagnetic materials, making it an essential tool for inspecting iron and steel structures, boilers, pressure vessels, pipelines, and welds across various sectors such as electric power, metallurgy, petrochemicals, and machinery. This device offers the flexibility of being directly connected to AC power or can be used with an optional AC or DC magnetization power supply, ensuring high efficiency and ease of use. Furthermore, it is particularly effective for challenging applications such as detecting welds on ship hulls, inspecting welds on high-altitude steel structures, and conducting internal inspections of pressure vessels.

Send Mail

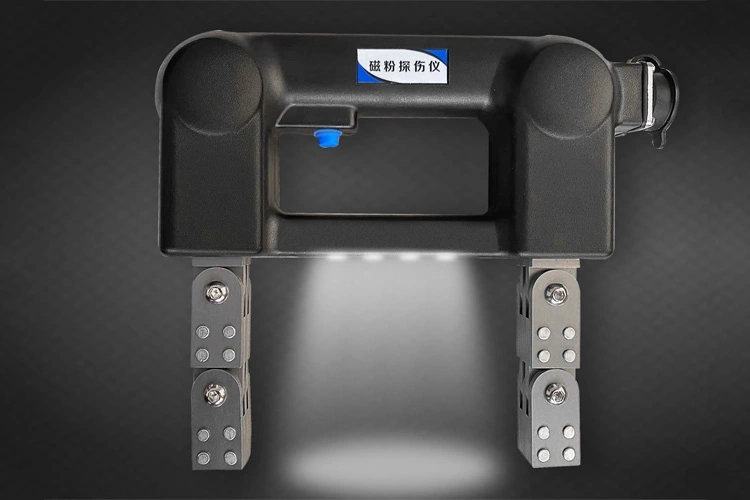

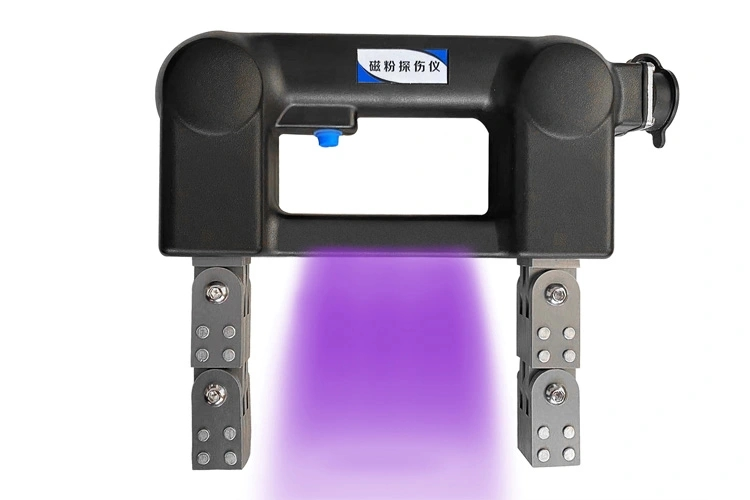

Features of B-100S Magnetic Yoke Flaw Detector

Compacted and small size and light weight.
Integrated and friendly mold, easy handle.
Perfected work pocket, professional carrying magnetized power supply, magnetization suspension materials, contrast aid, etc.
Optional for three power supply modes: AC magnetization power supply; DC magnetization power supply, and Single-phase AC power supply.

Parameters of B-100S Magnetic Yoke Flaw Detector

Model Type			B-100S	B-200S	B-300	B-300S
Single-phase AC power supply			AC220V 50/60Hz Standard configuration，（AC110V 50/60Hz；AC230V 50/60Hz；AC240V 50/60Hz Optional）
AC magnetization power supply			X	●	X	●
DC magnetization power supply			X	X	●	●
Working AC			AC2.2A
Working DC			X	X	DC 1.5A
Charging time			X	3 Hours
Battery life			X	3h~4h(AC)	3h~4h(DC)	4h~6h(AC)
Duty cycle			50%
Magnetic pole pitch			0~230mm
Lifting power		A C	≥4.5kg (44N)
		D C	≥18.1kg (177N)
Weight	Yoke		2.3kg
	Excitation supply		X	1.0kg/1.2kg	0.6kg	0.6kg/1.0kg

Remarks: "X" indicates that there is no this function, "●" indicates it has this function.

Standard Configuration Table of B-100S Magnetic Yoke Flaw Detector

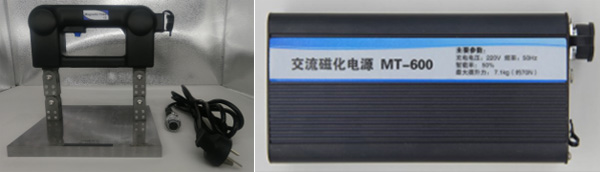

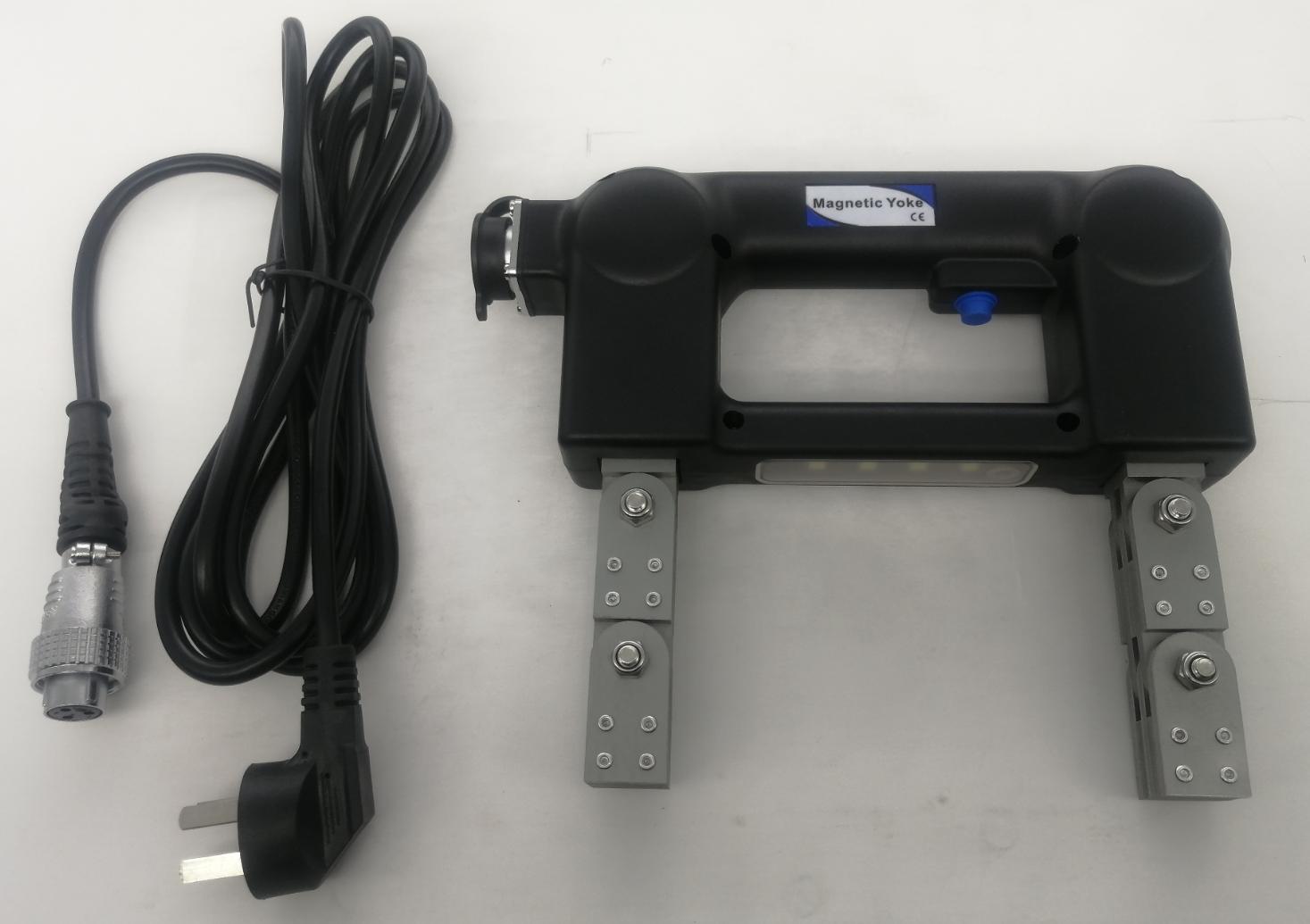

（I） Magnetic Yoke Flaw Detector Power leads Instrument box

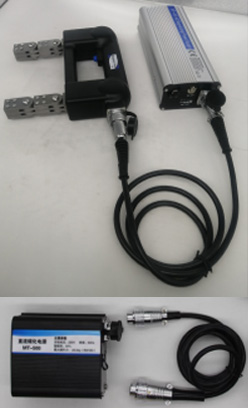

（II） Magnetic Yoke Flaw Detector Power leads AC magnetizing power supply AC battery charger AC power output cable AC power pack Instrument box

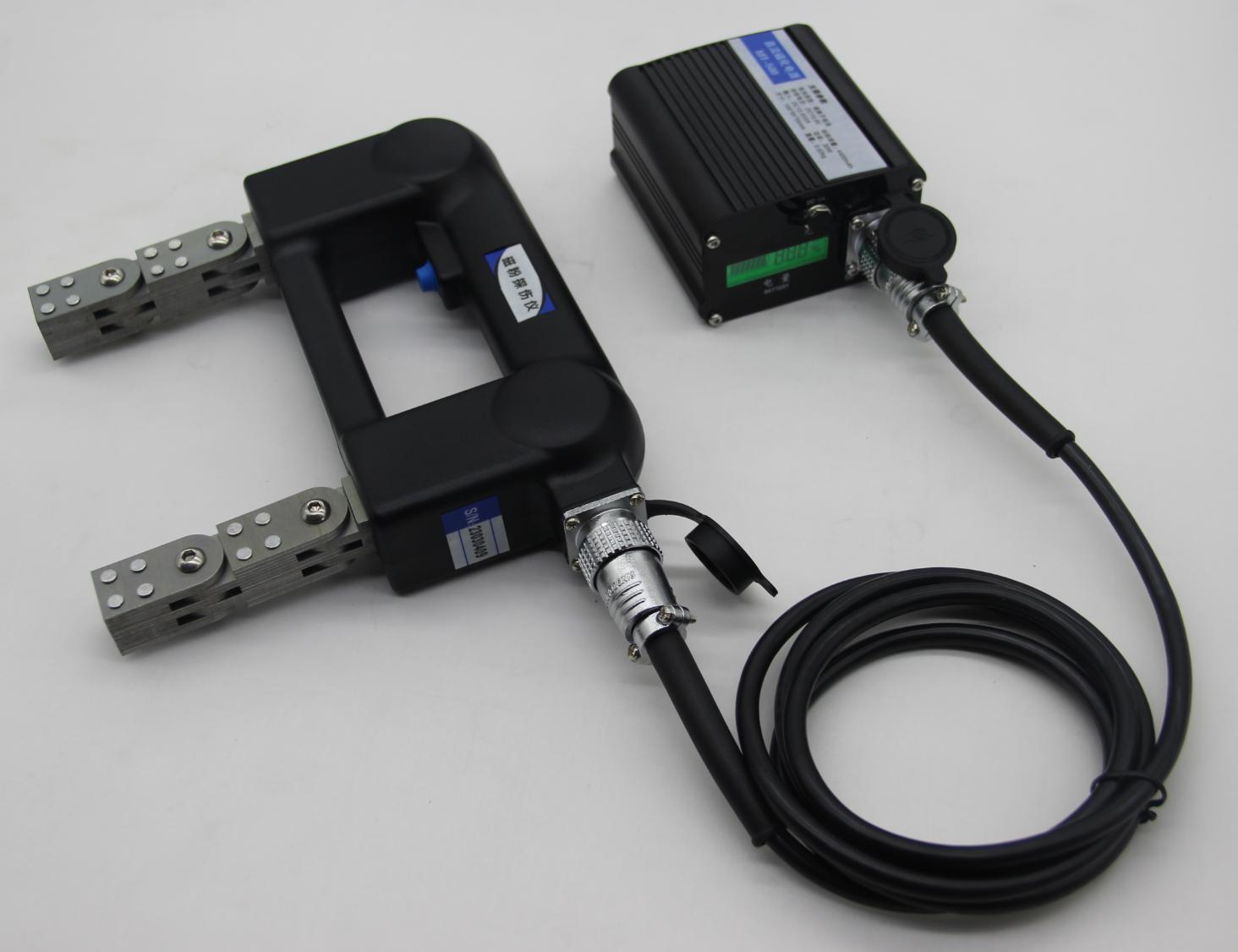

（III） Magnetic Yoke Flaw Detector Power leads DC magnetizing power supply DC battery charger DC power output cable DC power pack Instrument box

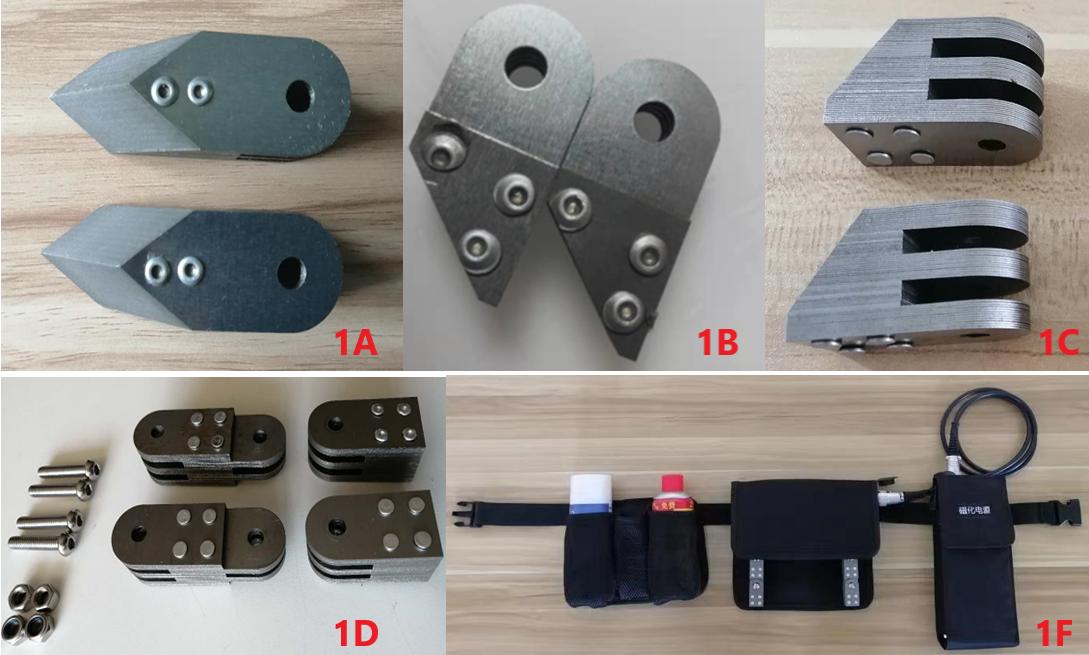

（IV） Magnetic Yoke Flaw Detector Power leads AC magnetizing power supply（standard configuration） AC battery charger AC power output cable AC power pack DC magnetizing power supply（optional） DC battery charger DC power output cable DC magnetized power pack Instrument box
