HSV Electric Test Stand

The HSV Motorized Test Stand is meticulously engineered to complement HP Digital force gauges and NK Analog force gauges, offering both manual and automatic control options for versatile testing applications. Equipped with a test number recorder, a precise time controller, and a clear LED screen for easy monitoring, these stands ensure accurate and repeatable results. They also feature an overload protection mechanism to safeguard the equipment and samples during testing. Designed for user-friendly operation, these stands facilitate a seamless testing process, making them an ideal choice for various force measurement tasks in laboratories and industrial settings.

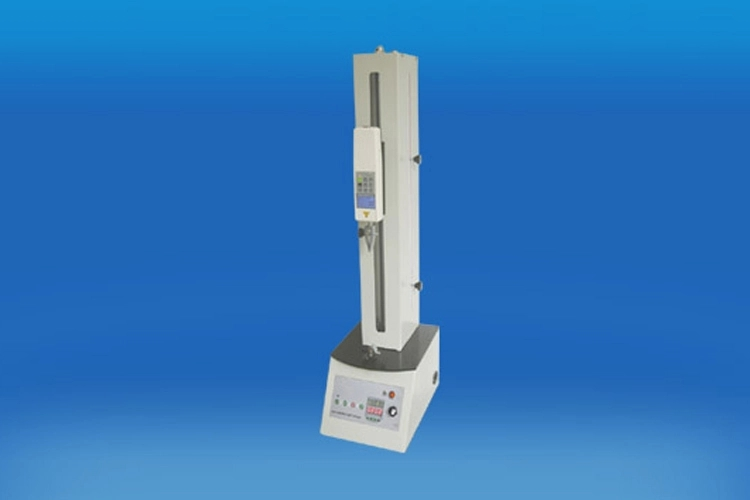

  • manual force test stand
  • manual force test stand

Specification of HSV Electric Test Stand

  • HSV Motorized Test Stand are special designed for HP Digital force gauge and NK Analog force gauge.

  • They are with the advangages of stepless timing, manual and automatic controller, test number and test time controller, LED screen shows

  • They have overload protection, high quality motor, etc.

  • They are easy operated and widely useed for the test of tension/compression, insertion/withdraw, fatigue and fracture.




Parameter of HSV Electric Test Stand

Force Capacity

500/1000N;

Max. Stroke

580 mm;

Speed range

30~300 mm/min;

Dimension

36*26*100(cm);

Net weight

50 Kg;

Counter

Maximum working cycle 9999 times one cycle;

Signal input

Stop working while reaching the limit;

Safety

Automatic stop working while overloading;

Voltage

AC 220V ( AC 110V can be customed );
