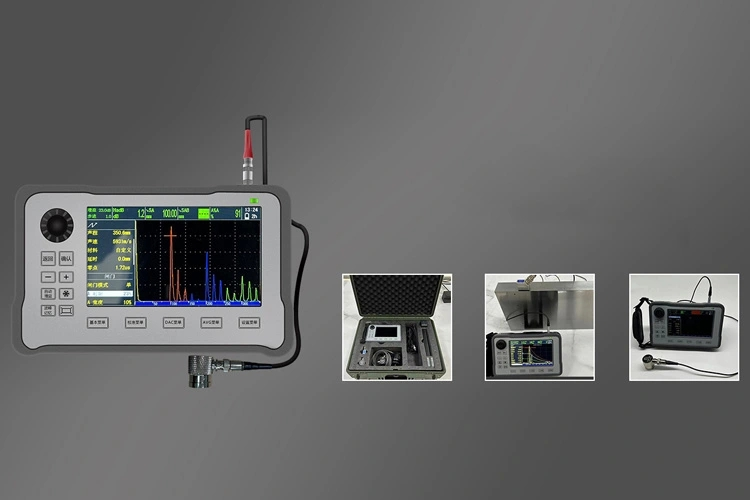

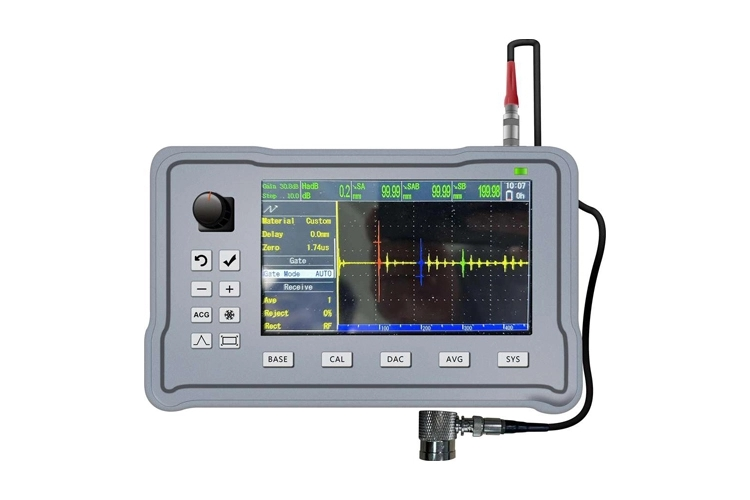

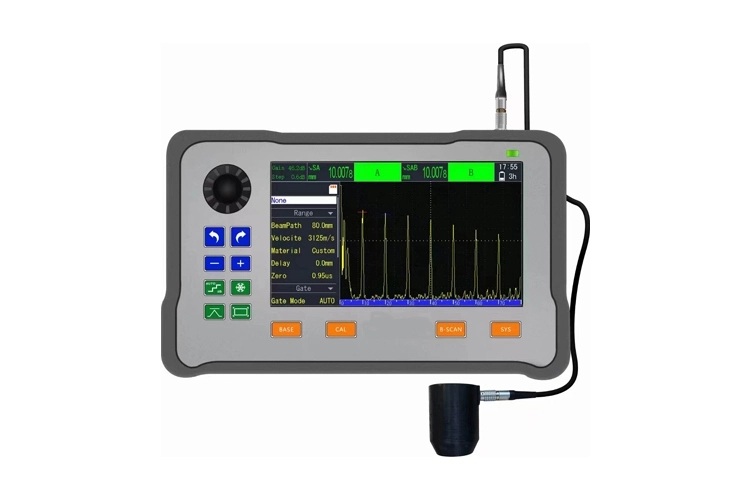

UF100 Ultrasonic Flaw Detector

UF100 ultrasonic flaw detector is a new type of ultrasonic testing product launched by our company, widely used in industries such as boilers, pressure vessels, power, petroleum, chemical, offshore oil, pipelines, shipbuilding, automobiles, mechanical manufacturing, metallurgy, metal processing, steel structures, railway transportation, nuclear power, universities, etc. It can conveniently detect, locate, evaluate and diagnose various internal defects (cracks, looseness, pores, inclusions, etc.) in workpieces . This digital ultrasonic flaw detector has a compact structure, stable waveform, strong endurance, high sensitivity, fast response, and a maximum repetitive emission frequency of up to 1000Hz. It is an extremely portable ultrasonic flaw detection product.

Features of UF100 Ultrasonic Flaw Detector

The main unit weight is light and suitable for one-handed carrying for operation.

PD65W fast charge and working + 12 hours long battery life.

5-inch IPS high- definition displaying with a brand friendly UI interface.

Support full screen touch, quick guide operation, virtual keyboard, easy to carry and use.

With functions of DAC, AVG, automatic gain, peak memory, color half-span, B-scan and other professional functions.

Including Chinese and English language switching, data output to SD card, online upgrade, screen capturing and many other practical functions.

Parameters of UF100 Ultrasonic Flaw Detector

Measuring range

10m /Longitudinal wave carbon steel/

/Metrological performance requirements:

≥3500mm/

Pulse mode

square wave, dual-square wave, sharp pulse

Pulse voltage

25V～300V adjustable Stepping 25V

Pulse width

0ns～500ns continuously adjustable, 10ns pace

Damping

strong or weak adjustable

Pulse repetition

frequency

Automatic or manual, continuously adjustable

from 100Hz to 1000Hz, with a pace of 10Hz

Gain

120dB, pace 0.1dB, 1dB, 10dB

Bandwidth

0.1MHz-25MHz

Wave filter

1M~5M

Display screen

5.0-inch LCD, the effective display screen size is

108mm * 64mm/ L*W

Resolution

800×480

Detector interface

Dual LEMO-00 C5

Alarm

Gate A, B alarm

Output

Type-c USB

Detection wave mode

Full wave, positive half wave, negative half

wave, RF

Gate

Independent A, B

Measurement mode

Peak, wave side

Save content

Single frame, multi-frame continuous recording

(≤200 frames)

Quantitative mode

DAC curve, AVG(DGS) curve

Auxiliary functions

Support touch, virtual keyboard, PD fast

charging, automatic gain, peak memory, freeze

Flaw detection

standards

AWS D1.1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345

Language

Chinese/English

Size and weight

183mm×113mm×45mm

780g, battery included

Battery

12 hours

Unit

Metric, imperial

Charger

“Genaral”AC（100～240V, 50～60Hz）

Operating temperature

-10℃～55℃

Horizontal linearity

0.6%

(Metrological performance requirements: ≤2%)

Vertical linearity

2.8%

(Metrological performance requirements: ≤6%)

Sensitivity margin

60dB

(Metrological performance requirements: ≥42dB)

Dynamic range

40dB

(Metrological performance requirements: ≥26dB)

Resolution

36dB

(Metrological performance requirements: ≥26dB)

Measuring range	10m /Longitudinal wave carbon steel/ /Metrological performance requirements: ≥3500mm/	Pulse mode	square wave, dual-square wave, sharp pulse
Pulse voltage	25V～300V adjustable Stepping 25V	Pulse width	0ns～500ns continuously adjustable, 10ns pace
Damping	strong or weak adjustable	Pulse repetition frequency	Automatic or manual, continuously adjustable from 100Hz to 1000Hz, with a pace of 10Hz
Gain	120dB, pace 0.1dB, 1dB, 10dB	Bandwidth	0.1MHz-25MHz
Wave filter	1M~5M	Display screen	5.0-inch LCD, the effective display screen size is 108mm * 64mm/ L*W
Resolution	800×480	Detector interface	Dual LEMO-00 C5
Alarm	Gate A, B alarm	Output	Type-c USB
Detection wave mode	Full wave, positive half wave, negative half wave, RF	Gate	Independent A, B
Measurement mode	Peak, wave side	Save content	Single frame, multi-frame continuous recording (≤200 frames)
Quantitative mode	DAC curve, AVG(DGS) curve	Auxiliary functions	Support touch, virtual keyboard, PD fast charging, automatic gain, peak memory, freeze
Flaw detection standards	AWS D1.1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345	Language	Chinese/English
Size and weight	183mm×113mm×45mm 780g, battery included	Battery	12 hours
Unit	Metric, imperial	Charger	“Genaral”AC（100～240V, 50～60Hz）
Operating temperature	-10℃～55℃	Horizontal linearity	0.6% (Metrological performance requirements: ≤2%)
Vertical linearity	2.8% (Metrological performance requirements: ≤6%)	Sensitivity margin	60dB (Metrological performance requirements: ≥42dB)
Dynamic range	40dB (Metrological performance requirements: ≥26dB)	Resolution	36dB (Metrological performance requirements: ≥26dB)
