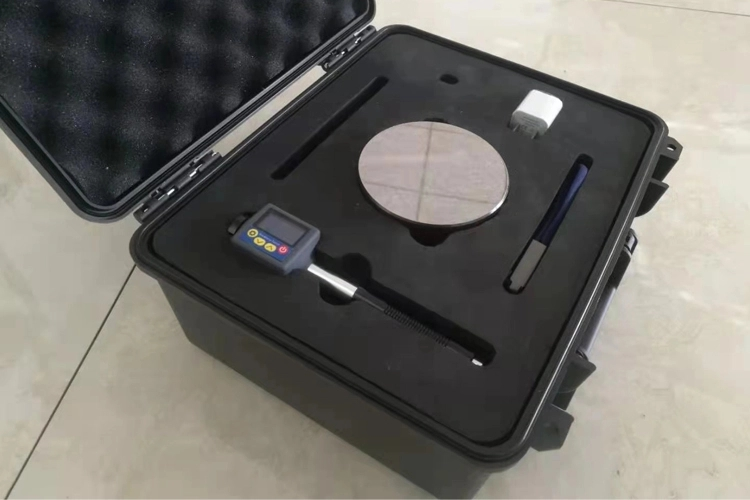

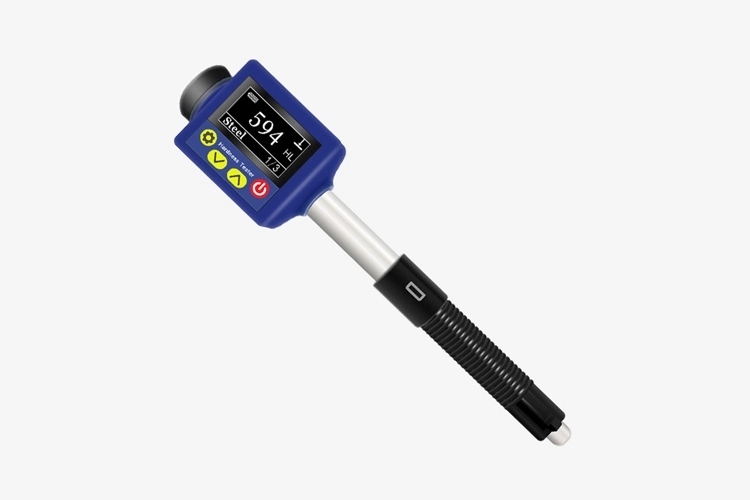

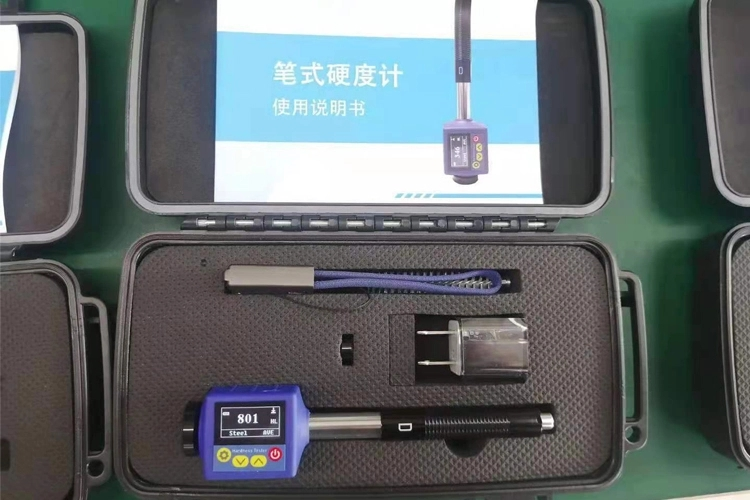

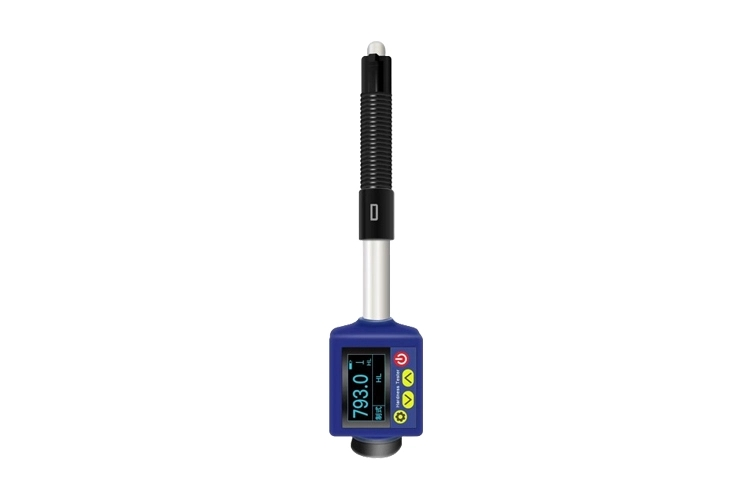

TH110 Pen Type Lee Hardness Tester

Name: TH110 Pen Type Lee Hardness Tester
Brand: Beijing Lanetech Square Co., Ltd.

This instrument is a portable measuring instrument, which can measure the hardness of common metal materials quickly, without damage and with high accuracy. It can be used in both laboratory and project site. Through the instrument measurement condition setting, it can meet the needs of a variety of measurements. It is widely used in mold, heat treatment, machining, pressure vessel, auto parts, aerospace and other industries, as well as universities, scientific research institutes, technical supervision, special inspection institutes, etc. It is a necessary instrument for nondestructive hardness testing of materials.

Send Mail

Features of TH110 Pen Type Lee Hardness Tester

The instrument is compact, convenient, and integrated design without connecting cables, which improves reliability.
It can also be clearly displayed in direct sunlight, which is applicable to various light conditions without worrying about the strong outdoor light.
The high-precision measuring circuit ensures the repeatability of the indication value ±0.8% (HLD=800).
It supports a variety of hardness systems: HL, HV, HRC, HRB, HB, HS.
Support USB direct charging battery life, fast and convenient.

Parameters of TH110 Pen Type Lee Hardness Tester

Measurement direction	Support 360 º (vertical down, oblique down, horizontal, oblique up, vertical up)
Detection range	(170-960) HLD, (17.9-69.5) HRC, (19-683) HB, (80-1042) HV, (30.6-102.6) HS, (13.5-101.7) HRB
Hardness system	Leeb (HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), Shore (HS)
Indication error	±0.5% (HLD=800)
Indication repeatability	0.8% (HLD=800)
Size	148mm×30mm×30mm
Power supply	Rechargeable lithium battery
Display	Industrial grade 128×64 graphic dot matrix OLED LCD
Continuous working time	About 20 hours
Working condition	Working temperature−10-50℃; Storage temperature: -30℃-60℃; Relative humidity≤90％;

Indication Error and Indication Repeatability of TH110 Pen Type Lee Hardness Tester

Serial number	Type of impact device	Hardness value of standard Leeb hardness block	Indication error	Indication repeatability
1	D	760±30HLD 530±40HLD	±6 HLD ±10 HLD	6 HLD 10 HLD
2	DC	760±30HLD 530±40HLD	±6 HLDC ±10 HLDC	6 HLD 10 HLD
3	DL	878±30HLDL 736±40HLDL	±12 HLDL	12 HLD+15
4	D+15	766±30HLD+15 544±40HLD+15	±12 HLD+15	12 HLD+15
5	G	590±40HLG 500±40HLG	±12 HLG	12 HLG
6	E	725±30HLE 508±40HLE	±12 HLE	12 HLE
7	C	822±30HLC 590±40HLC	±12 HLC	12 HLC
