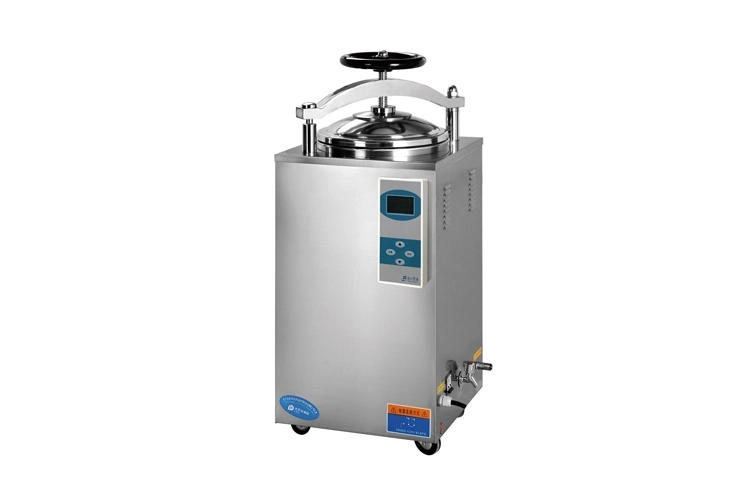

LS-100HD Vertical Pressure Steam Sterilizers

Name: LS-100HD Vertical Pressure Steam Sterilizers
Brand: Beijing Lanetech Square Co., Ltd.

The LS-100HD Vertical Pressure Steam Sterilizer stands as a quintessential device, perfectly suited for medical facilities and scientific research institutions aiming to achieve high standards of cleanliness and sterilization. This vertical autoclave machine is expertly designed to disinfect and sterilize a variety of items including surgical instruments, medical dressings, and various vessels with utmost efficiency. Its effectiveness in sterilization is unparalleled, ensuring that all tools and materials are free from any microbial contamination. What sets the LS-100HD apart is its built-in overpressure protection system, which guarantees the safety and reliability of the sterilization process. This feature prevents any potential hazards related to excessive pressure, making it a trustworthy choice for professionals in need of a dependable sterilization solution.

Send Mail

Specification of LS-100HD Vertical Pressure Steam Sterilizers

The vertical Pressure Steam Sterilizers are assembled with heating system;
Microcomputer controls whole system, over heat and over pressure protection system, which are reliable for the sterilizer’s effect.
Convenient operation and energy conservation. The vertical pressure steam sterilizer are ideal machines for clinics, scientific research institute and other organizations to sterilizer surgical instruments, fabrics, glasses, tools, etc.

Characteristics of LS-100HD Vertical Pressure Steam Sterilizers

Full stainless steel structure design.
Discharge the cool air and steam automatically after sterilization.
Automatically shut off with beep reminding after sterilization.
Hand wheel type for quick opening door structure.
Over temperature & over pressure auto-protection design.
Easy to operate, high safe and reliable.
Door safety locked system, self-clock.
With two stainless steel sterilizing baskets, up/up or up/down baskets.
LCD showing working status, touch type key.
Safe protection while water lacking.
With drying system.
The type of self inflating seal.

Parameter of LS-100HD Vertical Pressure Steam Sterilizers

MODEL	LS-35HD	LS-50HD	LS-75HD	LS-100HD
Technical Parameter	LS-35HD	LS-50HD	LS-75HD	LS-100HD
Chamber volume	35L/ φ318×450mm	50L/ φ340×550mm	75L/ φ400×600mm	100L/ φ440×650mm
Working pressure	0.22Mpa
Working temperature	134℃
Maximum. working pressure	0.23Mpa
Heat deviation	≤±1℃
Timer range	0-99min or 0-99hour 59min
Temperature adjust range	105-134℃
Power	2.5KW/AC220V 50HZ	3KW/AC220V 50HZ	4.5KW/AC220V 50HZ
Overall dimension(cm）	45×45×101	51×47×113	56×56×112	54×56×125
Transport dimension（cm）	57×55×115	59×59×128	65×63×128	68×63×137
G.W/ N.W	73Kg/55Kg	89Kg/69Kg	100Kg/80Kg	112Kg/86Kg
